Argo is an international program that collects information from inside the ocean using free drifting profiling floats that drift with the ocean currents and move up and down between the surface and a mid-water level. These floats are distributed over the global ocean to measure temperature and salinity in the upper 2,000 meters, annually providing 100,000 temperature/ salinity profiles and reference velocity measurements per year. Argo data are used to initialize ocean and coupled (i.e., ocean-atmosphere) forecast models and for dynamical model testing. This broad-scale global array of temperature/salinity profiling floats is a major component of the global ocean observing system.

Our Objectives

1. Provide a quantitative description of the evolving state of the upper ocean by collecting temperature and salinity profiles from the surface to 2,000 meters depth.

2. Improve weather and climate forecasts through the assimilation of Argo data in ocean and coupled (ocean and atmosphere) forecast models.

| Molly Baringer, Ph.D

Co-Principal Investigator

| Jay Harris

IT Specialist

| Claudia Schmid

Co-Principal Investigator of US Argo and Manager of US Argo Data Assembly Center

| Jaya Nair

Data Processing, Quality Control, and Web Pages

| Zach Barton

Ship Logistics

| Brandon Navarro

Software developer, Data Processing, Quality Control, and Web Graphics

| Jodi Brewster

Data Processing, Quality Control and BGC Argo

| Emily Osborne

Co-Principal Investigator of Biogeochemical-Argo

| Cedrick Estelhomme

Data Processing and Quality Control

| Yuan-Yuan Xu

Biogeochemical-Argo Postdoctoral Researcher

Top News

International Argo Program Wins IEEE Award

The international Argo Program, which includes NOAA’s Atlantic Oceanographic and Meteorological Laboratory, was recently awarded the Institute for Electrical and Electronics Engineers (IEEE) Corporate Innovation Award “for innovation in large-scale autonomous observations in oceanography with global impacts in marine and climate science and technology.”

An Argo float floating in the ocean.

Read More News

A phytoplankton bloom in the Atlantic Ocean. May 2016
In a recent article published in Frontiers in Marine Science, the history of the Argo program is examined and discussed. The Argo program began in 1998 when a team of international scientists, known as the “Argo Science Team,” proposed the idea for a global array of autonomous floats to obtain temperature and salinity measurements of the upper 2,000 meters of the global ocean. The new array of floats, called Argo, would go on to be endorsed as a pilot program of the Global Ocean Observing System and be used to fill in the large data gaps in ocean observations.
Estimated observations of chlorophyll with simulated observations from satellite and 1000 BGC-Argo floats.

Research Findings & Key Impacts

Argo Detects Sea Level Changes

Argo has greatly reduced the uncertainty of global heat storage estimates and therefore projections of sea level rise. Argo’s temperature measurements allow us to calculate how much heat is stored in the global ocean and to monitor from year to year how the distribution of heat changes with depth and from area to area. As ocean heat content increases, sea level rises, just like the mercury in a thermometer.

Argo Detects Changes in the Hydrological Cycle

Argo salinity data can be used to measure changes in global rainfall patterns related to climate change. Sea surface salinity reflects the local balance of evaporation (which increases salinity) versus precipitation (which decreases salinity). Warmer air can hold and transport more moisture, meaning that as average global temperatures increase, existing patterns of evaporation and precipitation will intensify. This leads to both increased risk of drought in dry areas and increased flooding in wet areas.

Argo Detects Changes in Climate Signals

The primary reason for collecting Argo data is to help us better understand the ocean’s role in earth’s climate, enabling improved estimates of how it will change in the future. Data from Argo allows for unprecedented spatial coverage of the global ocean, with approximately one float per 3-degree box across the global ocean. Argo data minimize spatial and temporal biases and are crucial for the detection of climate change signals. Within (and between) major ocean basins heat is constantly transferred around different areas, and seasonal cycles in some regions can overshadow interannual variability. Therefore, continuous global coverage is needed to accurately quantify longer-term changes happening in the ocean.

Argo Helps Diagnose Global Ice Volume

One of the major impacts of climate change is an increase in the global cycle of evaporation and rainfall caused by a warmer ocean surface layer. Argo floats measure salinity to monitor the changing hydrological cycle and global volume of ice in our oceans. The melting of either floating ice or glaciers and ice sheets lowers ocean salinity. Additionally, the ocean becomes fresher or saltier where the balance between evaporation minus rainfall tips in one direction over time.

Argo Improves Ocean Forecasts

Argo data, available in real time, are used by operational centers involved in the reanalysis and forecasting of the state of the ocean for both the short and long term. Operational centers use numerical ocean models to understand and predict the properties of the ocean and the ocean’s effect on the weather and climate. Ocean currents can be modeled and predicted more accurately in part due to Argo. Short-range ocean forecast applications that benefit from Argo data include search and rescue operations, fisheries, shipping, oil and gas, and the military.

Background

What is Argo?

Argo, the broad-scale global array of temperature/salinity profiling floats, is a major component of the ocean observing system. The Argo program is an international program that began in 1999 to measure temperature and salinty of the upper 2,000 meters of the global ocean. Conceptually, Argo builds on the existing upper-ocean thermal networks, extending their spatial and temporal coverage, depth range and accuracy, and enhancing them through the addition of salinity and velocity measurements. The name Argo was chosen because of the program’s partnership with the Jason earth observing satellites that measure the shape of the ocean surface. In Greek mythology Jason sailed on his ship the Argo.

Next

How does it work?

The standard Argo float mission is known as “park-and-profile.” The float descends to a target depth of 1,000 meters to “park” and drift with the ocean currents. Every 10 days the floats descend to 2,000 meters and then collect a vertical profile of temperature and salinity during ascent to the surface. When a float surfaces, the data are transmitted and the float’s position is determined either by GPS or by Système Argos (France).

Next

Motivation for the Argo Program

The data that Argo collects describe the temperature and salinity of the water, and some of the floats measure other properties that describe the biology/chemistry of the ocean. The primary reason for collecting these data is to help us understand the ocean’s role in earth’s climate to make improved estimates of how it will change in the future. Argo float measurements compared with Jason satellite observations continue to provide new insights into how the ocean “works” that can be used to improve climate models.

At present (2021) Argo collects 12,000 data profiles every month (400 per day). Researchers plan to continue collecting Argo data for as long as those data remain a vital tool for a wide range of ocean applications, including the detection of climate change.

Next

Maintaining the Global Array

Deployments of Argo floats began in 1999, and the 3,000-float goal was reached in November 2007. Argo collected its one-millionth profile in October 2012 and its two-millionth profile in September 2018. The Argo Information Centre (AIC) has created an interactive map of the argo float array shown below. This map gives you the ability to zoom, scroll, or drag the map, and click on a float to get its ID number.

To view the data for a particular float click on the float and then choose details. The details will display the most recent date the data was collected.

Argo 6-month float trajectories can be found below.

The Argo Program at AOML

AOML is the data processing center for all US Argo data. Argo floats are deployed in the US, the data are collected via satellite, processed and quality controlled by AOML, and then sent to the US Global Data Assembly Center (GDAC) for distribution to the user community. AOML is a full processing center for Core and Deep Argo floats, and is currently setting up a Biogeochemical (BGC) Argo processing system. The data are processed and distributed in real-time, freely available to everyone, and can be used by modelers, scientists, or anyone else who wants to use them. The data reach operational ocean and climate forecast/analysis centers via the Global Telecommunications System (GTS) and the Global Argo Data Assembly Centers (GDACs). These data are used in climate and oceanographic research. Our lab also works to deploy Argo floats through NOAA’s Ship of Opportunity Program (SOOP) and through research cruises.

Watch the video to the right to learn more about AOML’s role in the Argo program.

argoresearch

Research at AOML

Transports of the Atlantic Meridional Overturning Circulation from Argo and Altimetry

The Meridional Overturning Circulation (MOC) plays an important role in global heat and salinity budgets and is also believed to be linked with climate parameters such as rainfall and surface air temperatures in the northern hemisphere. There is also increasing evidence the South Atlantic plays a crucial role in the MOC’s variability. However, compared to the North Atlantic Ocean the South Atlantic is poorly sampled. To better understand the variability of the upper branch of the Meridional Overturning Circulation in the South Atlantic, a three-dimensional absolute velocity product has been constructed using sea surface height measurements from satellite altimetry, observations from Argo floats, and wind fields. These velocity fields, along with hydrographic profiles, are then used to estimate meridional volume and heat transport at several latitudes in the South Atlantic. To study the meridional coherence of the Meridional Overturning Circulation in more detail, three-dimensional velocity fields are also derived for the North Atlantic following the same approach as in the South Atlantic. These velocity fields are used to estimate the meridional volume and heat transports at several latitudes in the subtropical North Atlantic.

(a) Meridional volume transport in the upper 400m in the South Atlantic using Argo observations and satellite altimetry, the dotted lines mark the sections across 20°S, 25°S, 30°S, and 35°S where the strength of upper branch of the Meridional Overturning Circulation is estimated.

(b) Time series of the strength of the Meridional Overturning Circulation (MOC in Sv = 106 m3 s-1) at 35°S.

Click here to view the time series for the North Atlantic and South Atlantic.

Transport of upper ocean boundary current in sub-tropical South Atlantic from Argo and Altimetry

The Benguela Current forms the eastern limb of the subtropical gyre in the South Atlantic and transports a blend of relatively fresh, cool Atlantic water and relatively warm, salty Indian Ocean water northwestward. Therefore, it plays an important role in the overall meridional heat and freshwater transport in the South Atlantic. A new three-dimensional data set of the horizontal velocity in the upper 2,000 m that covers the years 1993 to 2015 is used to analyze the Benguela Current’s variability. This data set was derived using observations from Argo floats, satellite sea surface height, and wind fields. The main features of the horizontal circulation observed in this data set are in good agreement with those from earlier studies based on limited observations. Therefore, it can be used for a more detailed study of the flow pattern, as well as variability in the circulation in this region. In terms of variability, this 23-year long time series at 30 and 35°S reveals phases with large energy densities at periods of 3 to 7 months, which can be attributed to the occurrence of Agulhas rings in this region.

Climatological transport in the upper 800 m based on Argo and altimetry.
(a) in the Brazil Current Region and (b) the Benguela Current Region. Red (blue) vectors indicate southward (northward) meridional transports. Shading in (b) indicates the magnitude of the transport.

Click here to view the time series for the Benguela Current and Brazil Current.

Float Programs Under Argo

Core Argo

Core Argo is the temperature / salinity/ pressure operational mission that was the original goal the Argo Program. The basic mission of Argo is to track where heat and salinity are changing across the global ocean, down to a depth of 2,000 meters. The initial goal of the program called for the deployment of 3,000 profiling floats in a 3◦ x 3◦ array in the open ocean between 60◦N and 60◦S. This goal was met in November of 2007. The Argo Program has collected, processed, and distributed over two million vertical profiles of temperature and salinity from the upper ocean in the past two decades. The new array design, Argo2020, is global, full depth and multidisciplinary, and aims to contain 4,000 floats. The picture above shows an example of one core Argo float model. There are many different types of core Argo floats.

Deep Argo

Deep Argo aims to sample temperature and salinity over the full ocean depth up to 6,000 meters. The strength and variability of the large-scale ocean circulation that extends from the sea surface to the ocean bottom plays a significant role in the uptake and transport of heat and freshwater and the melting of sea ice. Since the inception of the Argo program, profiling floats have been limited to the top half of the sea (0-2,000m), and the accuracy of sensors has been similarly limited to upper ocean levels of temperature and salinity variability. The new generation of autonomous Deep Argo floats will sample the full ocean volume. This new array design, Argo2020, aims to deploy 1,200 Deep Argo floats. The picture above shows an example of one deep Argo float model. There are two deep Argo float models that dive to 6,000m depth and two models that dive to 4,000m depth.

BGC Argo

BGC-Argo aims at developing a global network of biogeochemical sensors on Argo profiling floats. Each float carries sensors to measure six core BGC-Argo variables: chlorophyll-a fluorescence, oxygen, nitrate, pH, and suspended particles, in addition to temperature, salinity, and pressure. These variables are the fundamental measurements that are required to address significant scientific and societal ocean/climate-related issues. The BGC-Argo network represents the most promising strategy for collecting temporally and spatially resolved observations of biogeochemical properties throughout the upper 2000 m of the ocean. The Argo2020 array design aims to contain 1,000 BGC-Argo. The picture above shows an example of one BG- Argo float model. Several core Argo floats also have BGC versions which carry dissolved oxygen sensors.

We are strong because of our community.

The Ship of Opportunity Program.

NOAA’s Ship of Oppurtunity Program (SOOP) aids in the worldwide effort to deploy Argo floats.

What is SOOP?

The Ship of Opportunity Program is a global partnership between scientific institutions and the maritime industry. NOAA, specifically AOML, manages the US SOOP. AOML works to recruit ships to assist scientists in collecting oceanographic data from the global ocean.

To learn more about the Ship of Opportunity Program, read its brochure.

bgc-argo

Biogeochemical-Argo at AOML

The Biogeochemical Argo (BGC-Argo) float array is a part of the internationally coordinated Argo network of robotic ocean profiling floats. BGC-Argo floats carry biological and chemical sensors that collect high-quality, multi-year ocean datasets from the sea surface to a depth of 2,000 meters that are expanding the existing Argo array that monitors ocean temperature and salinity. The growing global array of BGC-Argo floats are revolutionizing our ability to observe ocean biogeochemical cycles and understand ocean carbon uptake, acidification, deoxygenation, and marine ecosystem health.

NOAA’s AOML is deploying BGC-Argo floats in the chronically under-observed open Gulf of Mexico, which is an important US fishery region. These floats will measure temperature, salinity, oxygen, nitrate, pH, chlorophyll-a fluorescence, and suspended particles across the upper 2,000 m of the Gulf water column. An initial array of four BGC-Argo floats will be deployed in 2021 during NOAA’s fourth Gulf of Mexico Ecosystems and Carbon Cruise. Each battery operated BGC-Argo float will return ocean profile data via a satellite network in near-real time every ten days, equating to an estimated 250 total profiles per float over their 6.5 year lifespan. These new in situ observations will support research efforts on ocean acidification, seasonal hypoxia and interactions with freshwater influx, harmful algal bloom initiation, and impacts of extreme weather on ocean biogeochemistry. Our Gulf of Mexico BGC-Argo floats will also provide validation data for regional models and satellite observations of the surface ocean as well as provide critical subsurface ocean data, supplementing scarce and seasonally-biased ship-based Gulf of Mexico observations.

If you’d like to learn more about BGC-Argo at AOML, contact Principal Investigator Dr. Emily Osborne at emily.osborne@noaa.gov.

A University of Hawaii Biogeochemical (BGC) Argo float with three oxygen sensors.

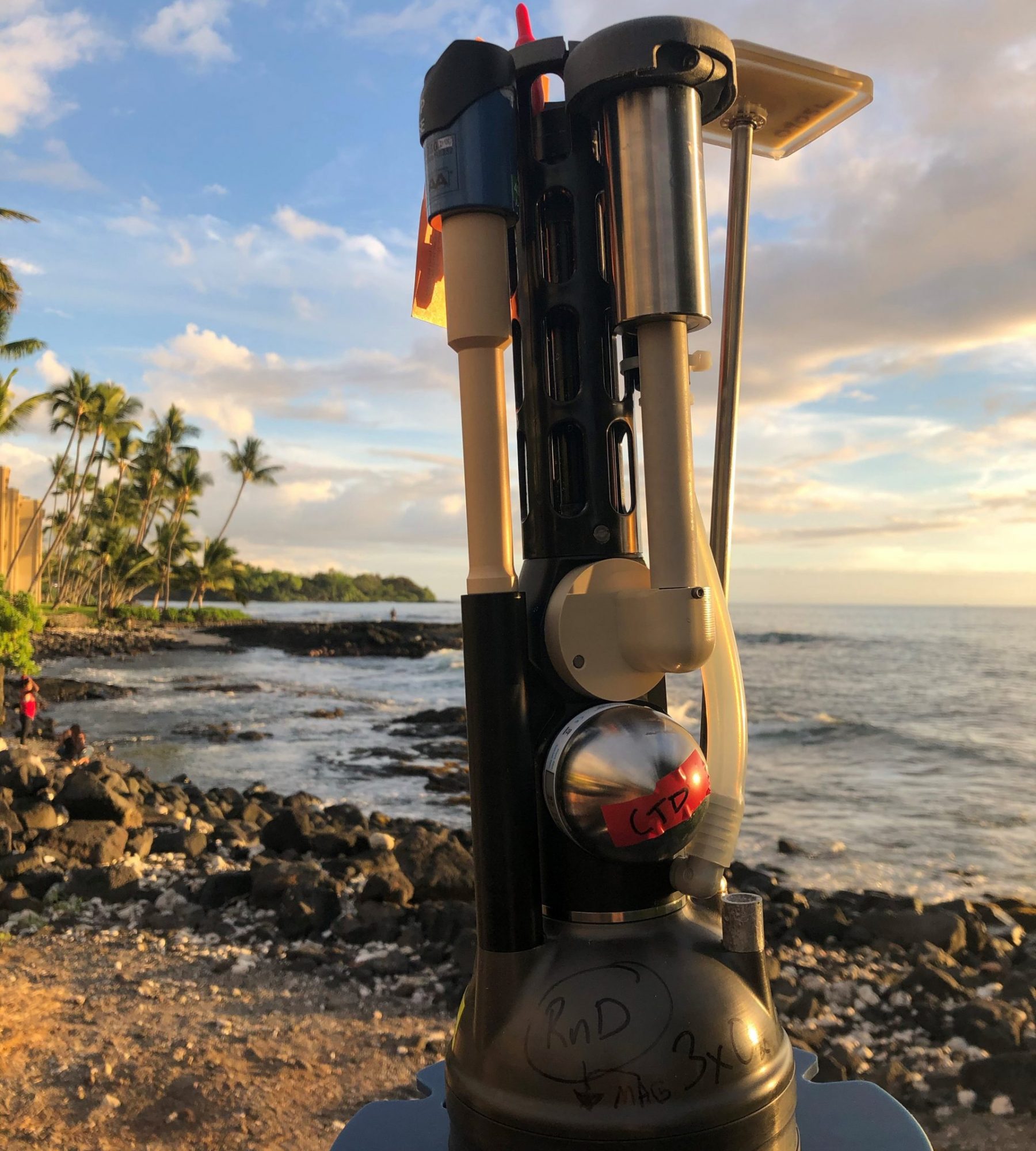

University of Washington Float1173 in Hawaii prior to deployment. The sensor on the left (blue top) is the Aanderaa oxygen optode, the sensor with the red ‘CTD’ label is the SBE63, and the sensor on the right (silver with a gray top) is the new SBE83 oxygen sensor.

argodata

argooperations

ARGO US Data Assembly Center

AOML acts as the US Data Assembly Center (DAC) for the Argo program. The role of the DAC is to collect and quality control all of the Argo data collected by US scientific and governmental institutions. After the required quality for the data is achieved, it is transmitted to the two global data assembly centers (GDAC)  in Brest, France and Monterey, California, who are the only two entities entitled to distributes Argo data to the world. The target is for these “real-time” data to be available within approximately 24 hours of their transmission from the float.

USGODAE Argo Global Data Assembly Center

Data Access Page

FTP SITE

Coriolis Argo Global Assembly Center

Data Access Page

FTP SITE

Featured Publication

First page of 'Dispersion of Surface Drifters in the Tropical Atlantic' publication

Van Sebille, E., Zettler, E., Wienders, N., Amaral-Zettler, L., Elipot, S., & Lumpkin, R. (2021). Dispersion of surface drifters in the Tropical Atlantic. Frontiers in Marine Science, 7, 1243.

Abstract: The Tropical Atlantic Ocean has recently been the source of enormous amounts of floating Sargassum macroalgae that have started to inundate shorelines in the Caribbean, the western coast of Africa and northern Brazil. It is still unclear, however, how the surface currents carry the Sargassum, largely restricted to the upper meter of the ocean, and whether observed surface drifter trajectories and hydrodynamical ocean models can be used to simulate its pathways. Here, we analyze a dataset of two types of surface drifters (38 in total), purposely deployed in the Tropical Atlantic Ocean in July, 2019. Twenty of the surface drifters were undrogued and reached only ∼8 cm into the water, while the other 18 were standard Surface Velocity Program (SVP) drifters that all had a drogue centered around 15 m depth….

Read Full Paper.

Argo Data 1999–2019: Two Million Temperature-Salinity Profiles and Subsurface Velocity Observations From a Global Array of Profiling Floats

Wong, A. P., Wijffels, S. E., Riser, S. C., Pouliquen, S., Hosoda, S., Roemmich, D., … & Park, H. (2020). Argo Data 1999–2019: Two Million Temperature-Salinity Profiles and Subsurface Velocity Observations From a Global Array of Profiling Floats. Front. Mar. Sci. 7:700. doi: 10.3389/fmars.2020.00700

Abstract: In the past two decades, the Argo Program has collected, processed, and distributed over two million vertical profiles of temperature and salinity from the upper two kilometers of the global ocean. A similar number of subsurface velocity observations near 1,000 dbar have also been collected. This paper recounts the history of the global Argo Program, from its aspiration arising out of the World Ocean Circulation Experiment, to the development and implementation of its instrumentation and telecommunication systems, and the various technical problems encountered….

Read Full Paper.

First page of 'Argo Data 1999-2019: Two Million Temperature-Salinity Profiles and Subsurface Velocity Observations From a Global Array of Profiling Floats' publication

argopublications

Argo Bibliography

Driving Innovative Science with Data.

Our Contribution to Global Ocean Observing.

This is a bibliography, originally published on Argo’s UCSD webpage, of papers published on Argo floats and their data. While this is an extensive list, papers in which Argo is a secondary source of data (model outputs and reanalyses, profile collection products, gridded products, etc.) are not all included here. Please send argo@ucsd.edu citations for Argo articles to keep this part of the bibliography updated.

Learn how to properly cite Argo data.

View pdf list by year.

Annual Argo Publications

Bar chart showing the number of Argo publications per year. Oct 2021.

AOML Publications & References

Yang, B. (2021). Seasonal Relationship Between Net Primary and Net Community Production in the Subtropical Gyres: Insights From Satellite and Argo Profiling Float Measurements. Geophysical Research Letters48(17), e2021GL093837. (https://doi.org/10.1029/2021GL093837)

Yang, B., Fox, J., Behrenfeld, M.J., Boss, E.S., Haëntjens, N., Halsey, K.H., Emerson, S.R., and Doney, S.C. (2021): In-situ estimates of net primary production in the Western North Atlantic with Argo profiling floats. Journal of Geophysical Research – Biogeosciences, [PDF]

Goes, M., Goni, G.J., Dong, S., Boyer, T., and Baringer, M. (2020): The complementarity value of XBT and Argo observations to monitor ocean boundary currents and meridional heat and volume transports: A case study in the Atlantic Ocean. Journal of Atmospheric and Oceanic Technology, (https://doi.org/10.1175/JTECH-D-20-0027.1).

Wong, A.S.P., Wijffels, S.E., Riser, S.C., Pouliquen, S., Hosoda, S., Roemmich, D., Gilson, J., Johnson, G.C., Martini, K., Murphy, D.J., Scanderbeg, M., Udaya Bhaskar, T.V.S., Buck, J.J.H., Merceur, F., Carval, T., Maze, G., Cabanes, C., Andre, X., Poffa, N., Yashayaev, I., Barker, P.M., Guinehut, S., Belbeoch, M., Ignaszewski, M., Baringer, M.O., Schmid, C., et al. (2020): Argo data 1999-2019: Two million temperature-salinity profiles and subsurface velocity observations from a global array of profiling floats. Frontiers in Marine Science, 7:700 (https://doi.org/10.3389/fmars.2020.00700).

Schmid, C. and Majumder, S. (2018): Transport variability of the Brazil Current from observations and a data assimilation model, Ocean Sci., 14, 417-436, doi:10.5194/os-14-417-2018 [PDF]

Majumder, S. and C. Schmid (2018): A Study of the Variability of the Benguela Current. Ocean sciences, 14, 273-283, doi:10.5194/os-14-273-2018 [PDF]

Schmid, C. and S. Majumder (2017): An Observations and Model-based Analysis of the Temporal Variability of the Brazil Current. Ocean sciences, doi:10.5194/os-2017-59

Majumder, S. and Claudia Schmid (2017): A Study of the Variability of the Benguela Current. Ocean sciences, (https://doi.org/10.5194/os-14-273-2018).

Majumder, S., C. Schmid, G. Halliwell (2016): An Observations and Model Based Analysis of Meridional Transports in the South Atlantic. Journal of Geophysical Research, doi: 10.1002/2016JC011693 [PDF]

Garzoli, S.L., S. Dong, R. Fine, C. Meinen, R.C. Perez, C. Schmid, E. van Sebille, and Q. Yao, 2015: The fate of the Deep Western Boundary Current in the South Atlantic. Deep-Sea Res. I , (doi: 10.1016/j.dsr.2015.05.008) [PDF]

Schmid, C. (2014): Mean vertical and horizontal structure of the subtropical circulation in the South Atlantic from three-dimensional observed velocity fields. Deep Sea Research I, 91 (9), 50-71, doi: 10.1016/j.dsr.2014.04.015 [PDF]

Schmid C., R.L. Molinari, R. Sabina, Y.H. Daneshzadeh, X. Xia, E. Forteza, and H. Yang, 2007: The Real-Time Data Management System for Argo Profiling Float Observations. J. Atmos. Oceanogr. Tech., 24(9):1608-1628. [PDF]

Partners

Sharing Resources Delivers Results.

Expanding Reach Through Partnerships.

34

Countries

Countries are a part of the Argo program and work to deploy argo floats.

15,000+

Argo Floats

The US and its partners have successfully deployed over 15,000 argo floats.

U.S. Collaborators

SOCCOM logo
NOAA's National Centers for Environmental Information logo
GO-BGC (Global Ocean Biogeochemistry Array) logo
University of Washington logo
mbari_logo

Related Site Links

Together with partners around the world, the Argo program has deployed over 15,000 floats throughout the world’s oceans. While not a complete list of Argo partners, below is a list of key contributors:

International Programs

argorelatedsites

Key Accomplishments

  • The Argo program reached its two-decade mark. The program has deployed more than 15,000 floats and collected over 2 million temperature and salinity profiles.

    2019

  • Argo collected its two-millionth profile in September 2018.

    September 2018

  • Argo collected its one-millionth profile in October 2012.

    October 2012

  • The goal of 3,000 active floats was reached in November of 2007.

    November 2007

  • The first Argo float that used Iridium communication was deployed in 2005. Since then, Iridium has become the preferred means of satellite communication for Argo data.

    2005

  • The first argo float was deployed.

    1999

  • The Argo Science Team (later renamed the Argo Steering Team) was constituted at a joint meeting of the CLIVAR UOP and GODAE. The Argo Program was further endorsed as a pilot program by the Global Ocean Observing System (GOOS).

    mid 1998

  • The “Argo Science Team” proposed a design for a global array of autonomous profiling floats to enhance the temperature and salinity measurements of the upper ocean.

    1998
