Projecting the Risk of Future Climate Regime Shifts

Figure 4

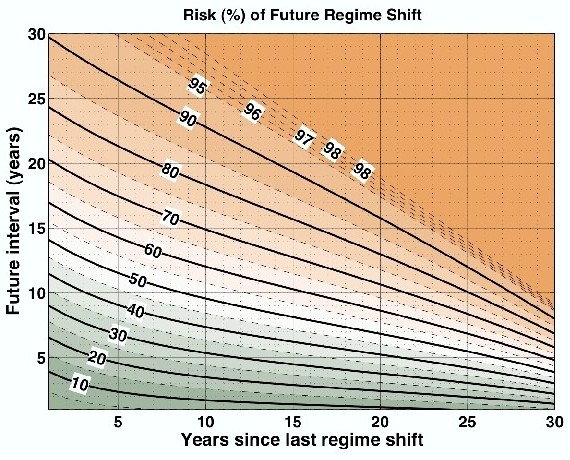

figure 4 Fig. 4 Distribution of the probability of an AMO regime shift occurring wthin t2 future years (ordinate) given that t1 years (abscissa) have elapsed since the last regime shift. Based on the gamma distribution with scale and shape parameters of 10.3 years and 1.93.
