Mission Summary
20190927N1 Aircraft 49RF
Satellite Validation/Diurnal Cycle
Aircraft Crew (49RF)
| Aircraft Commander | Kristie Twining
|
| Co-pilot | Rebecca Waddington
|
| Co-pilot | Norman
|
| Flight Director | Rich Henning
|
| Flight Director | James Carpenter
|
| System Engineer | James Warnecke
|
| Data Technician | Delgado
|
| AVAPS | Leonard Miller
|
| AVAPS | Akshar Patel
|
Science crew (49RF)
| Dropsonde | Jason Dunion | HRD
|
Mission Plan :
NOAA49 will fly a NESDIS Satellite Validation and Diurnal Cycle
mission around Hurricane Lorenzo.
Mission Summary :
| Take off
| Landing
| Barbados, BWI
| 12:08 UTC
| Barbados, BWI
| 19:58 UTC
|
| Expendables
| 37 GPS sondes
1 bad
| |

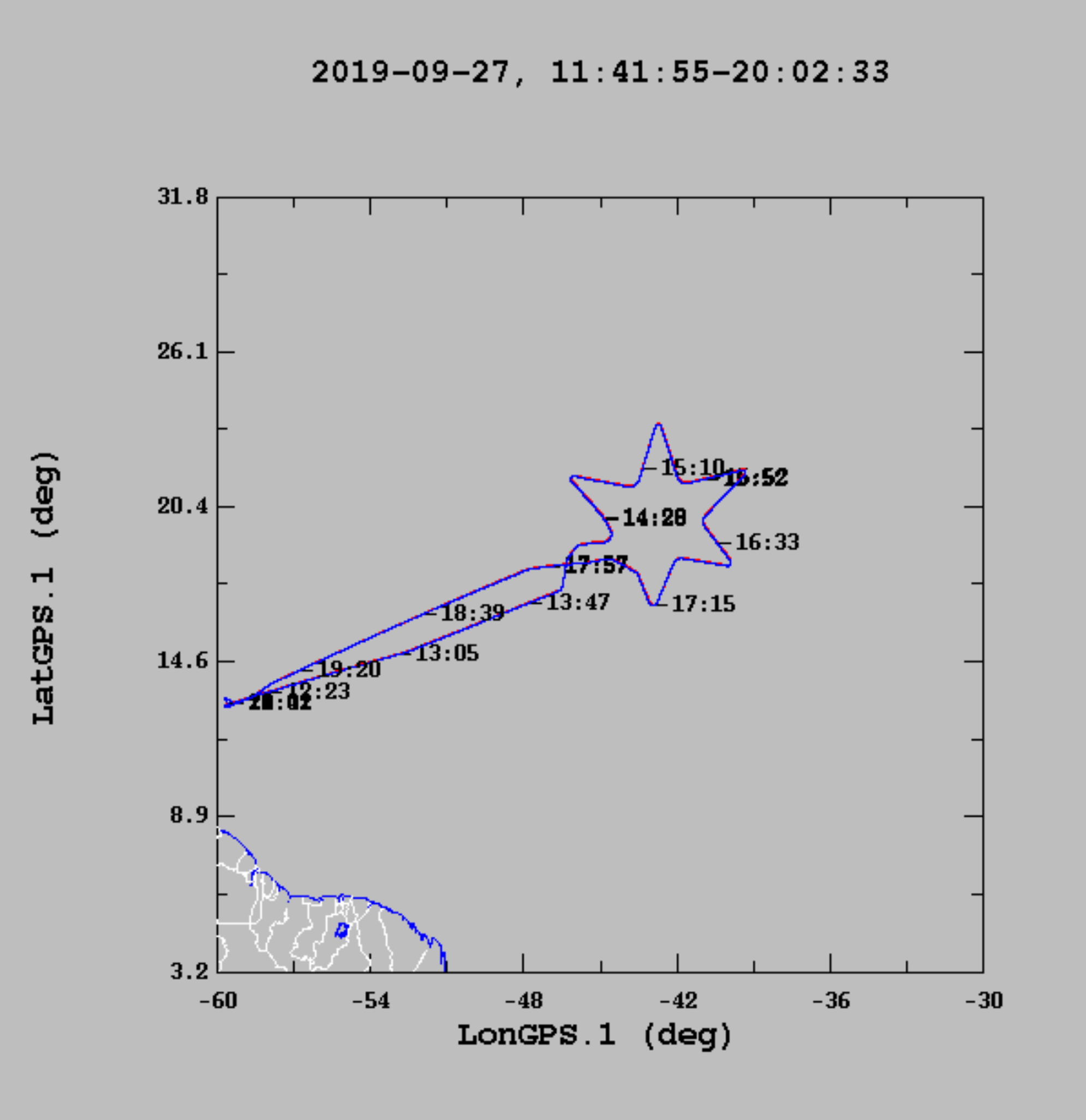

NOAA49 flew a successful NESDIS-tasked Satellite Validation and Diurnal
Cycle mission around Hurricane Lorenzo coordinated with a 1613Z overpass
with the NOAA-20 satellite.
HURRICANE MISSION PLAN: LORENZO
Prepared by the Hurricane Research Division File
September 28, 2019 5:44:54 PM
Aircraft: N49RF
Proposed takeoff: 27/1200Z
|
|

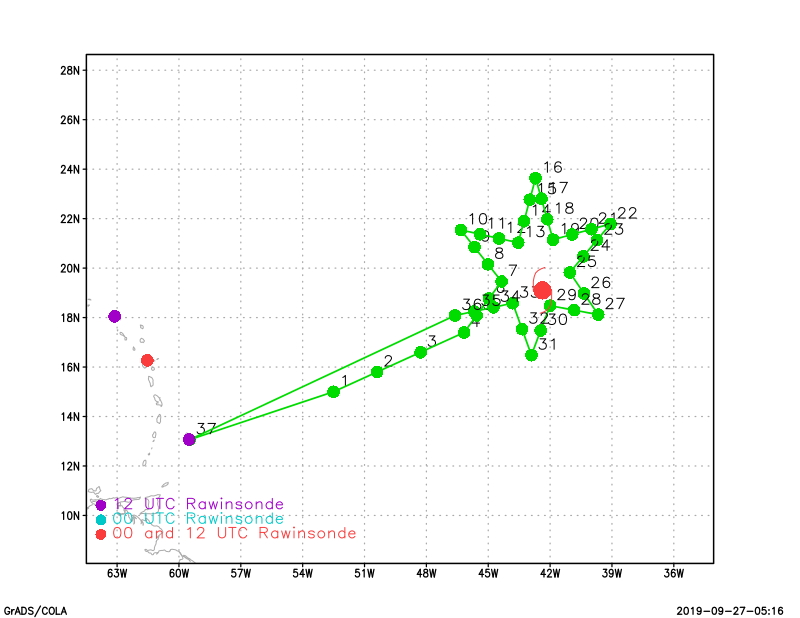

DROP LOCATION TABLE
|
| #
| LAT
| LON
| RAD AZM
| Time
|
|
| deg min
| deg min
| n mi deg
| hr:min
|
| 1 | 15 00 | 52 30 | | 1:00
|
| 2I | 15 48 | 50 23 | | 1:18
|
| 3I | 16 36 | 48 17 | | 1:36
|
| 4S | 17 24 | 46 10 | 240/240 | 1:54
|
| 5I | 18 05 | 45 34 | | 2:02
|
| 6I | 18 46 | 44 58 | | 2:09
|
| 7S | 19 28 | 44 21 | 100/270 | 2:17
|
| 8I | 20 09 | 45 01 | | 2:25
|
| 9I | 20 51 | 45 40 | | 2:33
|
| 10S | 21 33 | 46 20 | 240/300 | 2:41
|
| 11I | 21 22 | 45 24 | | 2:49
|
| 12I | 21 12 | 44 28 | | 2:56
|
| 13S | 21 02 | 43 33 | 100/330 | 3:03
|
| 14I | 21 54 | 43 16 | | 3:12
|
| 15I | 22 46 | 42 59 | | 3:19
|
| 16S | 23 38 | 42 42 | 240/360 | 3:26
|
| 17I | 22 48 | 42 25 | | 3:34
|
| 18I | 21 59 | 42 08 | | 3:42
|
| 19S | 21 09 | 41 51 | 100/030 | 3:49
|
| 20I | 21 22 | 40 56 | | 3:57
|
| 21I | 21 34 | 40 00 | | 4:04
|
| 22S | 21 47 | 39 04 | 240/060 | 4:11
|
| 23I | 21 08 | 39 44 | | 4:20
|
| 24I | 20 29 | 40 23 | | 4:27
|
| 25S | 19 49 | 41 03 | 100/090 | 4:34
|
| 26I | 18 58 | 40 21 | | 4:44
|
| 27S | 18 07 | 39 40 | 210/120 | 4:53
|
| 28I | 18 18 | 40 50 | | 5:03
|
| 29S | 18 29 | 42 00 | 100/150 | 5:12
|
| 30I | 17 29 | 42 27 | | 5:22
|
| 31S | 16 29 | 42 54 | 210/180 | 5:31
|
| 32I | 17 32 | 43 22 | | 5:41
|
| 33S | 18 35 | 43 49 | 100/210 | 5:51
|
| 34I | 18 25 | 44 45 | | 5:59
|
| 35I | 18 15 | 45 41 | | 6:06
|
| 36S | 18 05 | 46 37 | 240/240 | 6:14
|
Mission Evaluation / Problems :
Mission Data :
Flight Director's log |
Flight Director's manifest |
NetCDF data |
serial data |
Drop log
1 second data
