Mission Summary
20160924I2 Aircraft 43RF
Tropical Storm Karl

Aircraft Crew (43RF)
Aircraft CommanderScott Price
Co-pilotDanny Rees
Co-pilotNate Kahn
NavigatorPete Siegel
Flight EngineerKen Heystek
Flight DirectorBrian Belson
Flight DirectorIan Sears
Data TechnicianDana Naeher
Dropsonde OperatorBobby Peek
Dropsonde OperatorJeff Hartberger
Scientific Crew (43RF)
RadarBrad KlotzHRD
DropsHui ChristophersenHRD
Ocean WindsZorana JelenakNESDIS
Ocean WindsJoe SappNESDIS

Scientific Crew (Ground)
RadarJohn GamacheHRD

Mission Plan :

15Z Steering currents

15Z Wind shear analysis

The mission is to conduct a RAPX experiment into Tropical Storm Karl. The storm has a central pressure of 994mb and is at 55kts. It is located just east of Bermuda and is accelerating into the North Atlantic at about 16kts (Figure 1). Karl is undergoing extratropical transition, so the maximum surface winds are shifting to the eastern side of the storm. It is embedded in a frontal zone and under high NE shear (Figure 2). Track guidance show Karl continuing into the North Atlantic (Figure 3) possibly strengthen to a minimal hurricane before becoming fully extratropical (Figure 4).

The plan calls for a single Figure-4 pattern with the shortened legs (60 nm) to reduce on station time given the long transit (Figure 5a). Flight altitude is at 7000 feet radar with only IR sondes/AXBT combo drops at the endpoints. During one of the cross sections of the storm, there may be a possible Global Hawk overflight for an intercomparison study. A possible Ocean Winds module may also be conducted in the region of highest winds during this flight with additional drops. The high incidence SFMR module may also be conducted if there is sufficient time. Upon completion of the mission, the plane will return to St. Croix.

Prepared by the Hurricane Research Division
File: current1.ftk
September 21, 2016
Aircraft: N43RF
Proposed takeoff: 24/1800Z
deg min deg min n mi/deg hr:min
1S32 5461 02 60/2252:52
2S34 1959 21 60/0453:24
3S34 1961 03 60/3153:47
4S32 5459 22 60/1354:19
Mission Summary :

Take off Landing
St. Croix, USVI 17:41 UTC St. Croix, USVI 02:25 UTC

12Z Track forecasts

12Z Intensity forecasts

The butterfly pattern was abandoned in favor of attempting two over flights with the Global Hawk (Figure 5b). The initial was supposed to be a cross section began on the NW quadrant and finished to the SE, however the center was not fixed due to the need to stay on the same heading/path as the Global Hawk. A 'downwind' leg was taken out to the east of the storm where one 15 degree banked circle was performed. A final cross section was completed ending on the SW side of the storm. Given the storm’s acceleration it was determined that no more modules could be performed and the P3 recovered in St. Croix. A satellite animation showed the cold cloud tops associated with the center of Karl growing throughout the mission (Figure 6). The radar analysis shows the strongest winds were on the SE side of Karl and near the end of the 60 nm leg (Figure 7). Peak flight level winds were 59 knots. SFMR reached 46 knots while the strongest surface winds from a dropsonde were found on drop 2 with 42 knots.

Proposed and Actual flight track

IR satellitel loop

A total of 4 IR sondes/AXBTs were dropped and 1 radar analyses were completed.

Mission Evaluation:

Radar analyses

This RAPX mission was shifted into an ET experiment given the structural changes Karl was presenting. One radar analysis was completed and the P3 worked to complement the data being collected by the Global Hawk and G-IV. However competing research interested made the mission difficult. A suggestion for the following missions where the P3 and Global Hawk perform coincident cross sections is to allow the flight director of the P3 to fix the center first. The FD can estimate the center better using the TDR than NHC often can using only satellite information.

Problems :

The distance and speed at which Karl was moving out to the North Atlantic reduced the on station time of the P3. Competing research interests between the TDR and an instrument intercomparison with the Global Hawk made it difficult to identify who had priority. Using the NHC fixed center for the first cross section without allowing the P3 to hunt for the center made the first pass miss the center by 40 miles. This caused the P3 to be travelling downwind and moving much faster than expected, staying well ahead of the Global Hawk. Unable to slow down and still maintain a nominal pitch for IWRAP to collect useable data, the first cross section was not performed as hoped. A second was attempt with much better results.

Mission Data :

Final flight track

Plot of raw High Density Obs

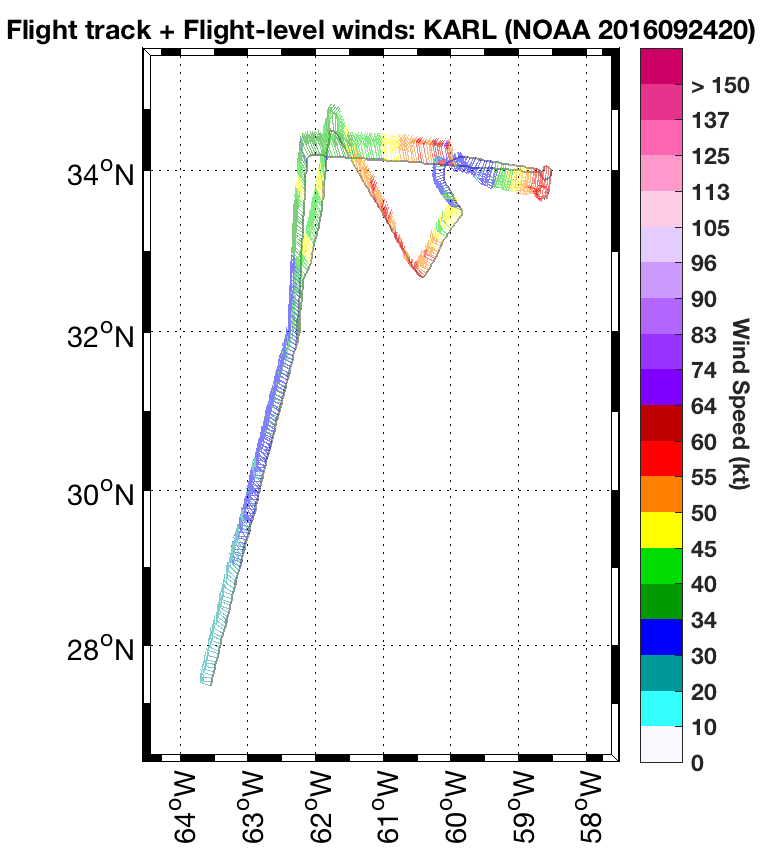

Plot of raw Flight Level winds

Plot of raw SFMR winds

Flight Director's manifest | NetCDF data | Flight Director's log | serial data
