| Aircraft Commander | Kristie Twining |
| Co-pilot | Fritzler |
| Flight Director | Rich Henning |
| Flight Director | Jess Williams |
| System Engineer | Steve Paul |
| Data Technician | Patel |
| Data Technician | Gabe DeFeo |
| Dropsonde Operator | Delgado |
 Original Proposed NOAA 49 track |
 Actual Synoptic Surveillance NOAA 49 track |
Mission Plan :
NOAA 49RF (N49) will fly a synoptic surveillance mission around Hurricane Irma.
|
Prepared by the National Hurricane Center September 07, 2017 8:15:38 PM Aircraft: N49RF Proposed takeoff: 09/1730Z | |||||||
| DROP LOCATION TABLE | |||||||
| # | LAT | LON | Time | ||||
| deg min | deg min | hr:min | |||||
| 1 | 27 07 | -79 52 | 0:24 | ||||
| 2 | 30 00 | -80 00 | 0:48 | ||||
| 3 | 31 30 | -78 30 | 1:05 | ||||
| 4 | 31 30 | -76 30 | 1:20 | ||||
| 5 | 31 30 | -74 30 | 1:35 | ||||
| 6 | 30 00 | -75 30 | 1:49 | ||||
| 7 | 30 00 | -77 30 | 2:04 | ||||
| 8 | 27 07 | -78 32 | 2:29 | ||||
| 9 | 26 33 | -77 20 | 2:40 | ||||
| 10 | 26 25 | -75 51 | 2:51 | ||||
| 11 | 24 12 | -76 12 | 3:10 | ||||
| 12 | 22 54 | -76 30 | 3:20 | ||||
| 13 | 21 57 | -77 14 | 3:30 | ||||
| 14 | 21 00 | -75 00 | 3:49 | ||||
| 15 | 20 00 | -74 00 | 4:01 | ||||
| 16 | 19 30 | -76 00 | 4:17 | ||||
| 17 | 19 00 | -78 00 | 4:34 | ||||
| 18 | 21 13 | -78 42 | 4:53 | ||||
| 19 | 21 17 | -79 52 | 5:02 | ||||
| 20 | 21 51 | -81 04 | 5:12 | ||||
| 21 | 21 00 | -83 00 | 5:29 | ||||
| 22 | 22 00 | -85 30 | 5:51 | ||||
| 23 | 24 00 | -84 00 | 6:11 | ||||
| 24 | 24 00 | -87 00 | 6:34 | ||||
| 25 | 26 00 | -87 00 | 6:51 | ||||
| 26 | 28 00 | -87 00 | 7:07 | ||||
| 27 | 30 00 | -87 00 | 7:23 | ||||
| 28 | 29 00 | -85 00 | 7:41 | ||||
| 29 | 27 00 | -85 00 | 7:57 | ||||
Mission Summary :
| Take off | Landing
| Linder-Lakeland, FL
| 17:21 UTC
| Linder-Lakeland, FL
| 01:26 UTC
| | ||
Problems :

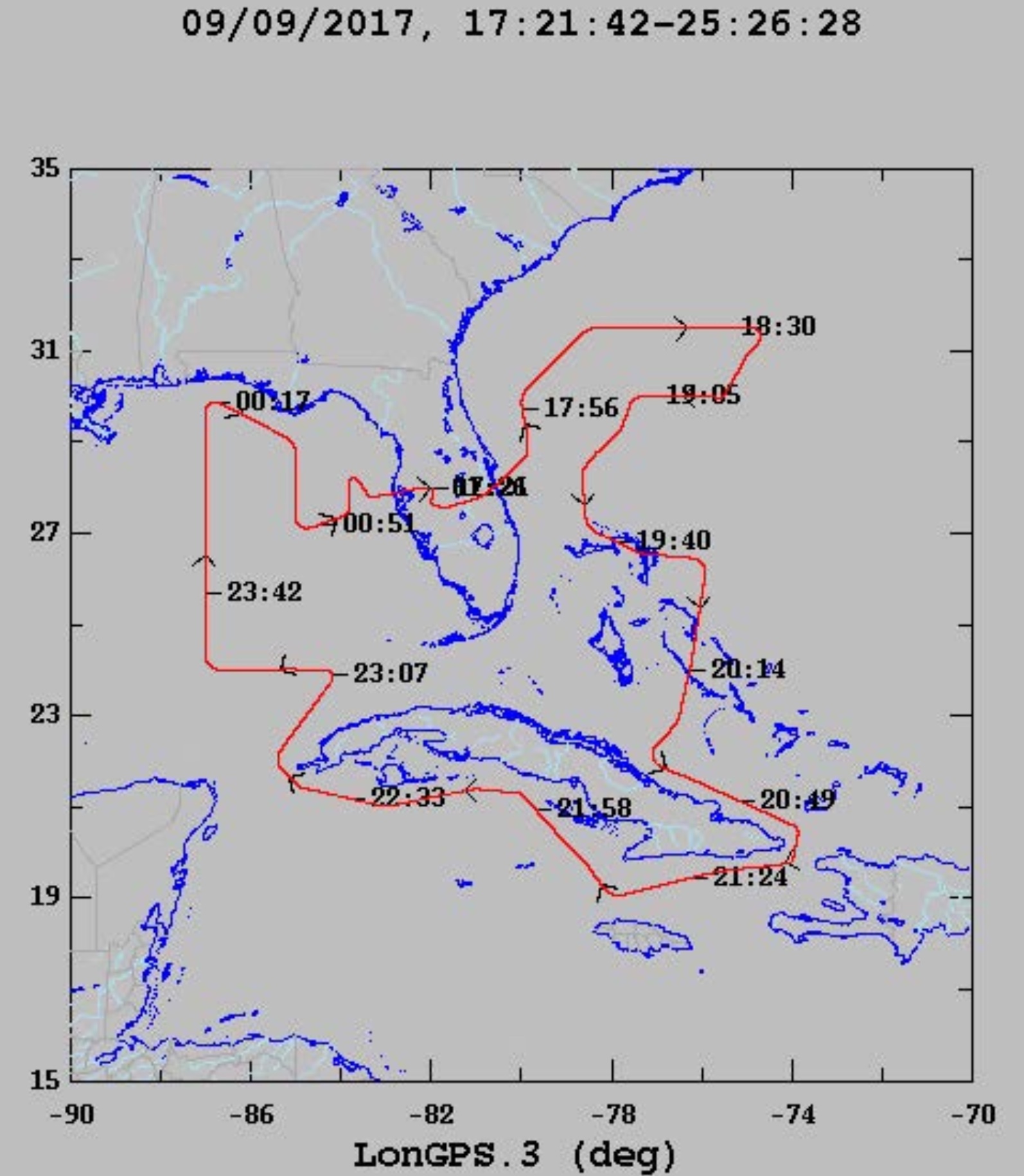

 Flight track |
 Temperature and Moisture |
 Wind and Atlitude |
Flight Director's log | Flight Director's manifest | NetCDF data | serial data
