Flight Director | Paul Flaherty |
AVAPS | John Hill |
Dropsonde Scientist | John Kaplan |
Mission Plan :
The G-IV jet, with HRD scientists John Kaplan, will fly a Synoptic Surveillance missions around Hurricane Ike. The jet will leave MacDill AFB, FL at 05:30 UTC and will recover at MacDill AFB, FL by 13:30 UTC.
Aircraft: N49RF Altitude: FL410-450 Proposed takeoff: 10/0530Z | |||
DROP # | LAT (d m) | LON (d m) | TIME (h mm) |
1 | 29 00 | -83 45 | 0:13 |
2 | 28 00 | -85 00 | 0:26 |
3 | 26 00 | -85 00 | 0:42 |
4 | 25 12 | -86 12 | 0:54 |
5 | 26 30 | -86 30 | 1:05 |
6 | 27 33 | -87 20 | 1:15 |
7 | 29 00 | -87 00 | 1:27 |
8 | 30 00 | -88 00 | 1:39 |
9 | 28 07 | -88 32 | 1:55 |
10 | 28 07 | -89 52 | 2:05 |
11 | 29 00 | -91 00 | 2:16 |
12 | 27 33 | -91 04 | 2:28 |
13 | 28 00 | -93 00 | 2:43 |
14 | 28 30 | -95 00 | 2:59 |
15 | 27 00 | -94 00 | 3:14 |
16 | 26 30 | -91 54 | 3:30 |
17 | 25 12 | -92 12 | 3:41 |
18 | 25 00 | -94 00 | 3:55 |
19 | 26 00 | -95 00 | 4:07 |
20 | 25 00 | -96 00 | 4:18 |
21 | 24 00 | -95 00 | 4:29 |
22 | 23 00 | -96 00 | 4:40 |
23 | 22 00 | -94 00 | 4:58 |
24 | 21 00 | -93 00 | 5:10 |
25 | 23 00 | -93 00 | 5:26 |
26 | 23 54 | -91 54 | 5:37 |
27 | 22 51 | -91 04 | 5:48 |
28 | 22 17 | -89 52 | 5:59 |
29 | 22 17 | -88 32 | 6:09 |
30 | 22 51 | -87 20 | 6:20 |
31 | 22 00 | -86 00 | 6:32 |
32 | 23 54 | -86 30 | 6:48 |
33 | 24 00 | -85 00 | 7:00 |
34 | 23 30 | -83 30 | 7:12 |
35 | 25 00 | -84 00 | 7:25 |
36 | 26 00 | -83 00 | 7:37 |
37 | 27 00 | -84 00 | 7:48 |
Mission Summary :
The mission flight plan was altered slightly due to the close proximity of drops near the beginning of the mission. Consequently, sondes were dropped at only 35 of the original 37 proposed locations (see below). However, only 34 sondes were transitted since one of the sondes was a fast fall that was not backed up and difficulties were encountered with the ASPEN software that precluded coding up and sending the thermodynamic data from this sonde.
Since the storm was very large, the flight was rather turbulent by G-IV standards especially on the east side. Also, surface winds of about 62 knots were measured on one of the drops made early in the flight.
Problems :
The sondes worked fairly well; however, there were a total of 3 sondes that were not processed due to a variety of problems. Of those, two had no launch detect and one was a fast fall. Another fast fall sonde was worked up but not send due to problems encountered when trying to code up and send only the thermodynamic data using the ASPEN software. Thus, a total of 38 sondes were dropped but 34 transmitted. Also, 2 sondes had to be re-transmitted since CARCAH did not receive them even though confirmation of a successful transmission was received from the ASPEN software when they were originally sent.
John Kaplan
Dec. 12, 2008
Aircraft: N49RF Altitude: FL410-450 Takeoff: 10/0530Z | ||||
DROP # | LAT (d m) | LON (d m) | PROPOSED TIME (h mm) | COMMENTS |
1 | 28 54 | 83 54 | 0:13 | |
2 | 28 00 | 85 00 | 0:26 | |
3 | 26 06 | 85 06 | 0:42 | |
4 | 26 30 | 86 30 | 1:05 | |
5 | 27 36 | 87 18 | 1:15 | |
6 | 29 00 | 87 06 | 1:27 | Resent message |
7 | 29 54 | 88 00 | 1:39 | |
8 | 28 12 | 88 36 | 1:55 | |
9 | 28 12 | 90 00 | 2:05 | |
10 | 28 54 | 90 54 | 2:16 | |
11 | 27 36 | 91 12 | 2:28 | |
12 | 28 00 | 93 00 | 2:43 | Resent message |
13 | 27 30 | 94 24 | 3:14 | 2 previous sonde failures (no launch detect) |
14 | 26 24 | 92 00 | 3:30 | |
15 | 26 12 | 92 18 | 3:41 | |
16 | 25 00 | 94 00 | 3:55 | |
17 | 25 54 | 95 00 | 4:07 | |
18 | 25 00 | 94 00 | 4:18 | Fast fall not sent |
19 | 24 00 | 95 06 | 4:29 | No winds 300-600 mb lightning |
20 | 23 00 | 95 54 | 4:40 | Dropped early |
21 | 22 00 | 94 00 | 4:58 | |
22 | 21 12 | 93 00 | 5:10 | |
23 | 23 00 | 92 54 | 5:26 | |
24 | 23 30 | 91 36 | 5:37 | second drop/1st was fast fall not sent |
25 | 22 54 | 91 06 | 5:48 | |
26 | 22 18 | 89 54 | 5:59 | |
27 | 22 18 | 88 30 | 6:09 | |
28 | 22 48 | 87 18 | 6:20 | |
29 | 22 06 | 86 06 | 6:32 | |
30 | 23 54 | 86 24 | 6:48 | |
31 | 24 00 | 85 06 | 7:00 | |
32 | 23 36 | 83 36 | 7:12 | |
33 | 25 00 | 83 54 | 7:25 | |
34 | 26 00 | 83 00 | 7:37 | Est. drop location ( Did not hit sfc) |
35 | 26 54 | 83 54 | 7:48 |
Dropsonde plots

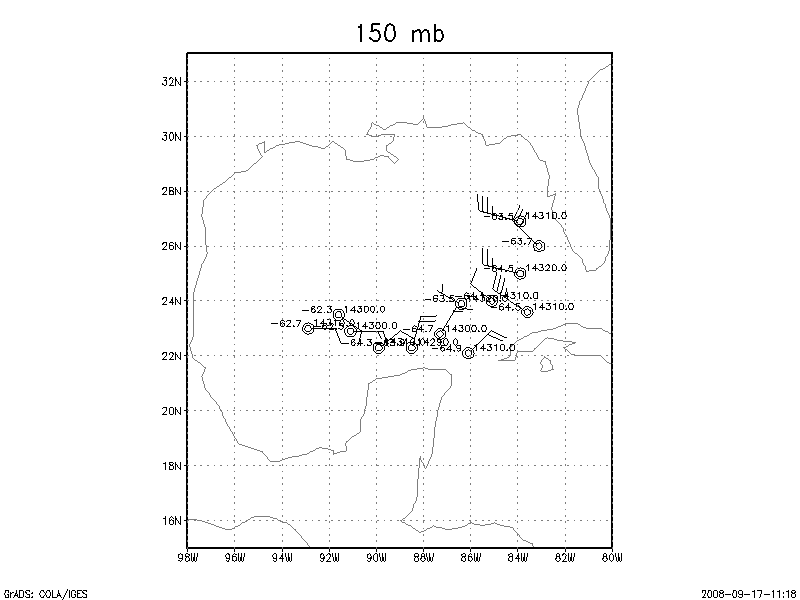

100 mb

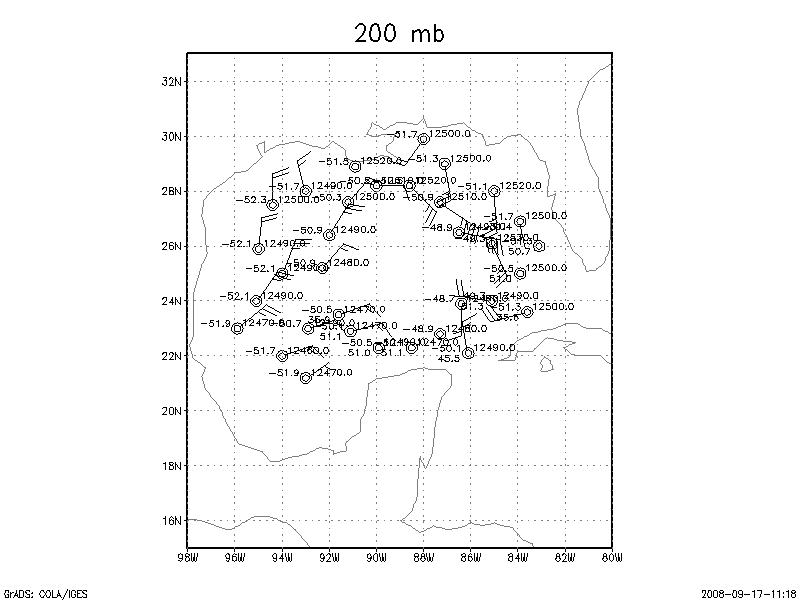

200 mb

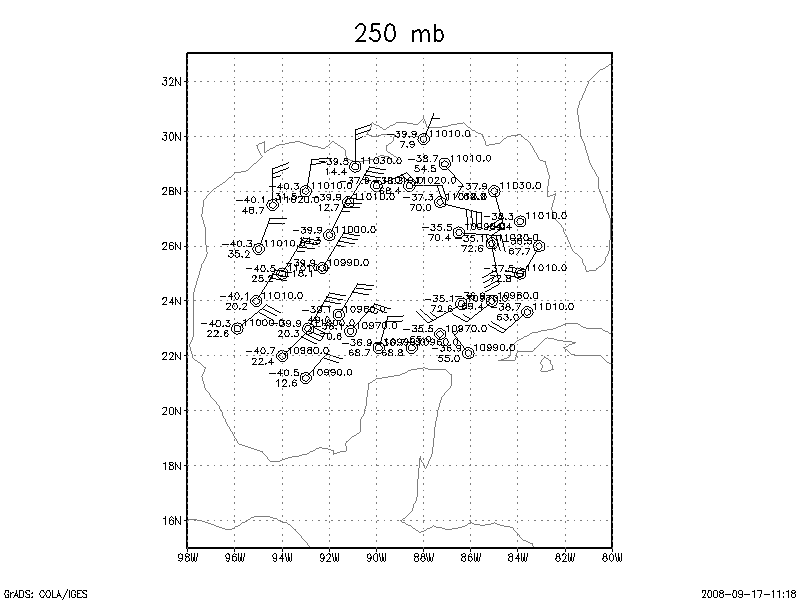

250 mb
300 mb
400 mb

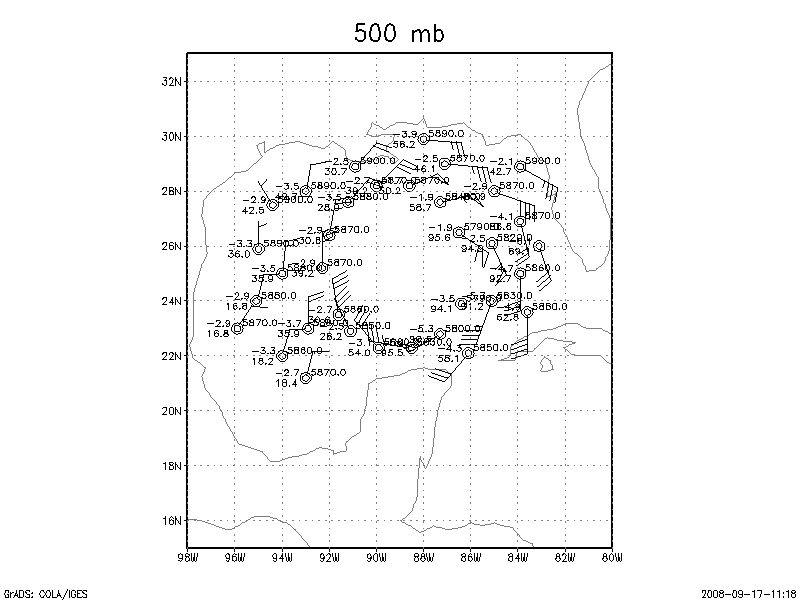

500 mb
600 mb

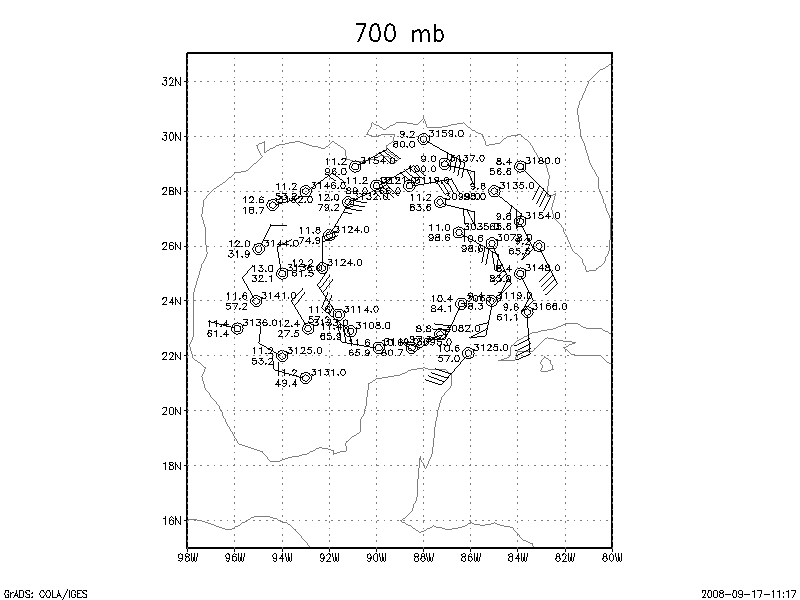

700 mb
850 mb

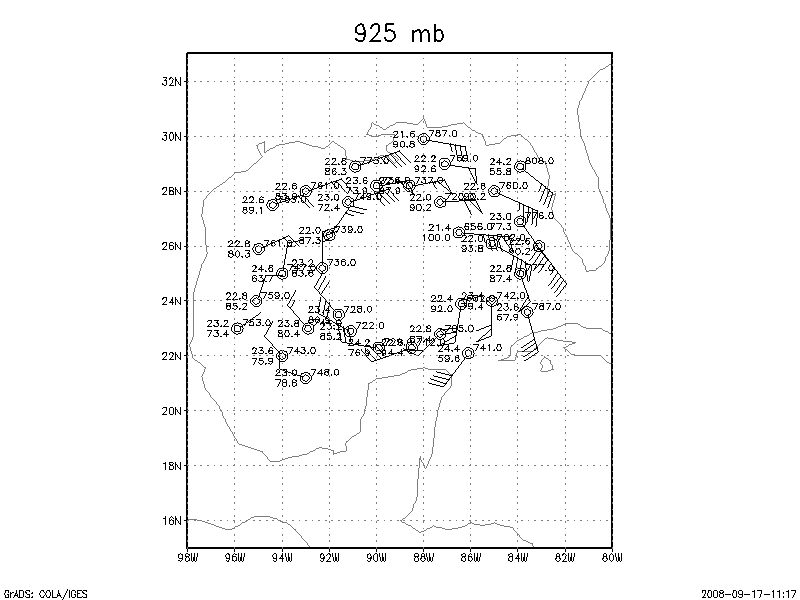

925 mb

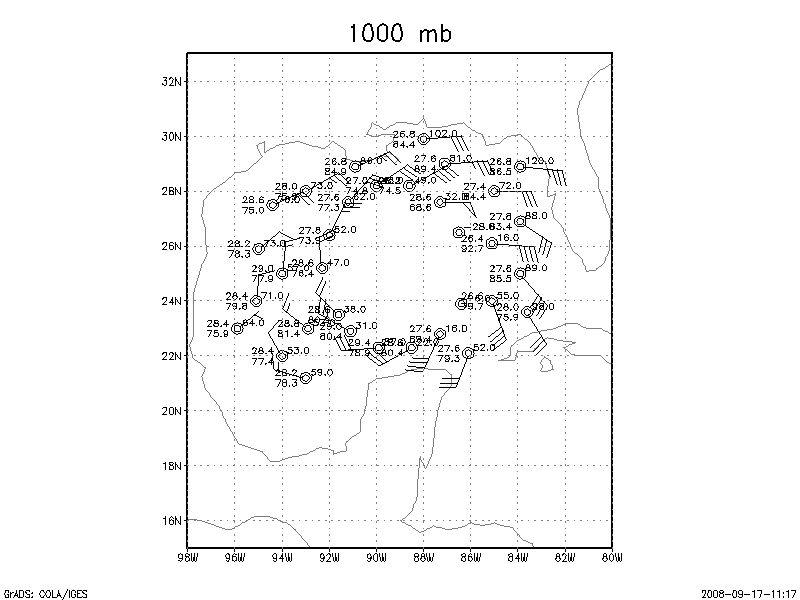

1000 mb

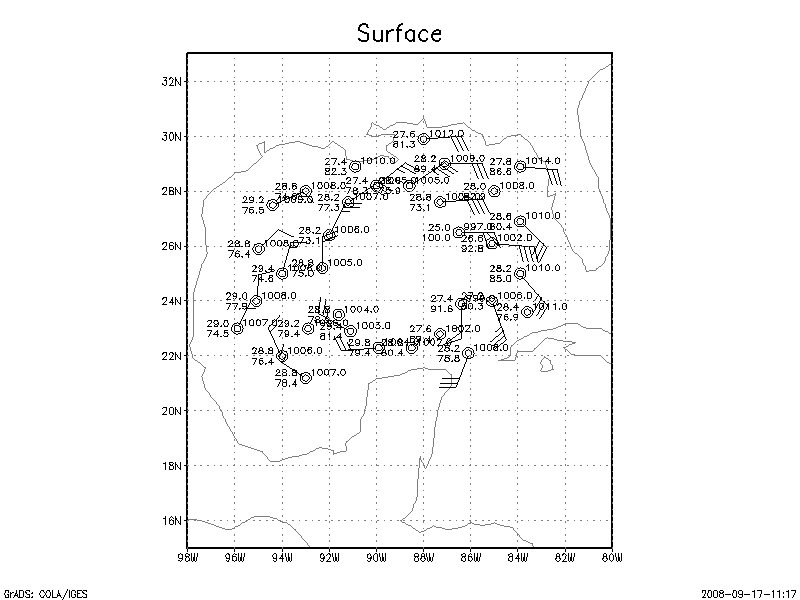

surface
