Mission Summary
20060829N1 Aircraft 49RF
Ernesto flight 2006

Scientific Crew (49RF)
Stan Goldenberg

Mission Plan :

The G-IV jet, with Stan Goldenberg aboard will fly a Synoptic Surveillance mission around Tropical Storm Ernesto. The jet will leave MacDill AFB, FL at 2:00 AM EDT and will recover at MacDill AFB, FL by 10:30 AM EDT.

Mission Summary :

The G-IV jet, with Stan Goldenberg aboard flew a Synoptic Surveillance mission around Tropical Storm Ernesto. The jet left MacDill AFB, FL at 2:00 AM EDT and recover at MacDill AFB, FL by 9:50 AM EDT. 23 GPS dropsondes were processed.

Pressure height maps of dropsonde data
200mb map
250mb map
300mb map
400mb map
500mb map
700mb map
850mb map
925mb map
1000mb map
surface map

Problems :

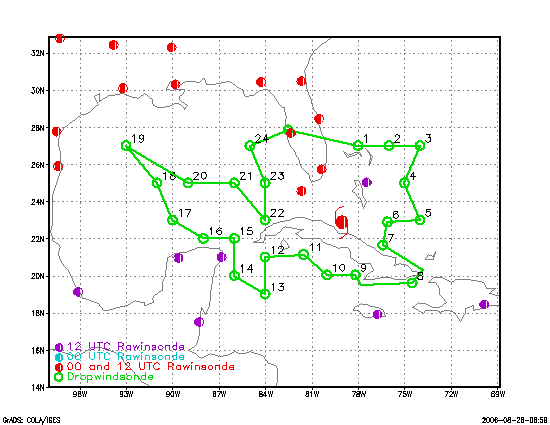

ERNESTO MISSION PLAN
ERNESTO
Aircraft: N49RF
Altitude: FL410-450
Proposed takeoff: 29/0600Z
DROP
#
LAT
(d m)
LON
(d m)
TIME
(h:mm)
1 27 00-78 000:36
2 27 00-76 000:51
3 27 00-74 001:06
4 25 00-75 001:25
5 23 00-74 001:43
6 22 54-76 061:59
7 21 38-76 242:10
9 19 36-74 302:41
11 20 03-78 103:13
12 20 03-80 023:27
13 21 08-81 323:42
14 21 00-84 004:02
15 19 00-84 004:18
16 20 00-86 004:36
17 22 00-86 004:52
18 22 00-88 005:08
19 23 00-90 005:26
20 25 00-91 005:44
21 27 00-93 006:07
22 25 00-89 006:42
23 25 00-86 007:05
24 23 00-84 007:28
25 25 00-84 007:44
26 27 00-85 008:02


Page last updated August 28, 2006
