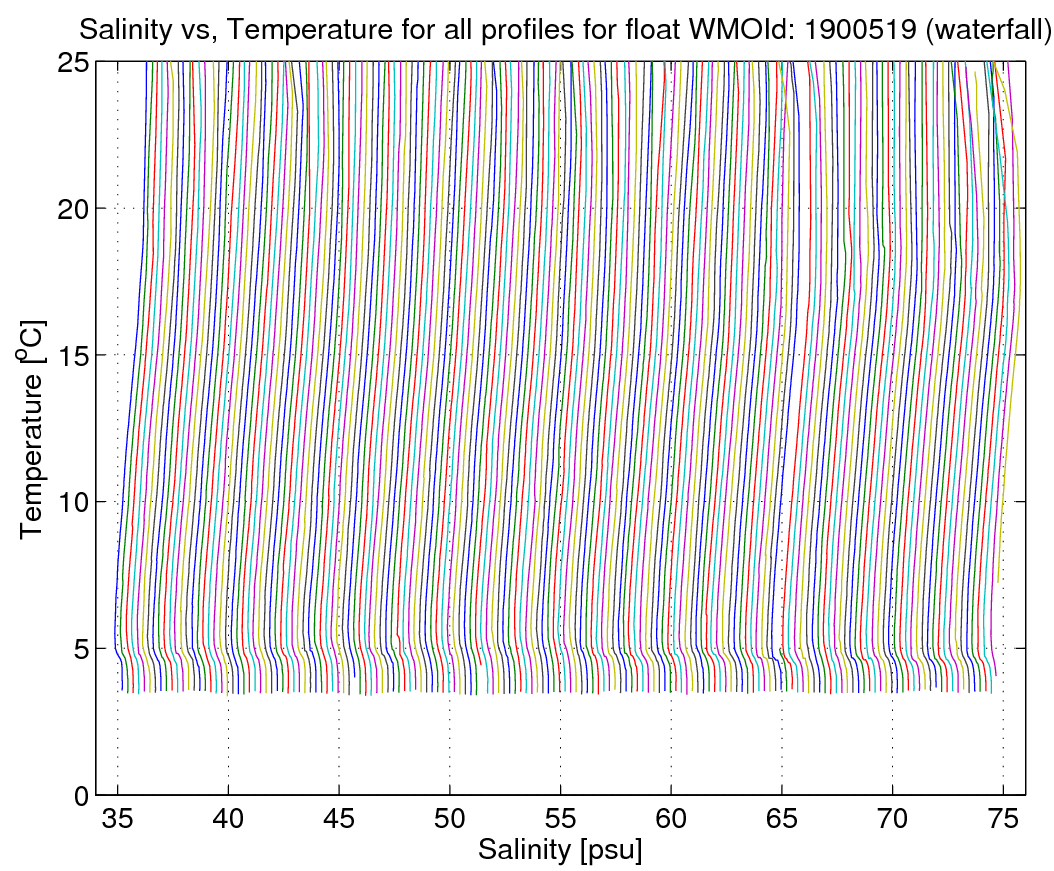

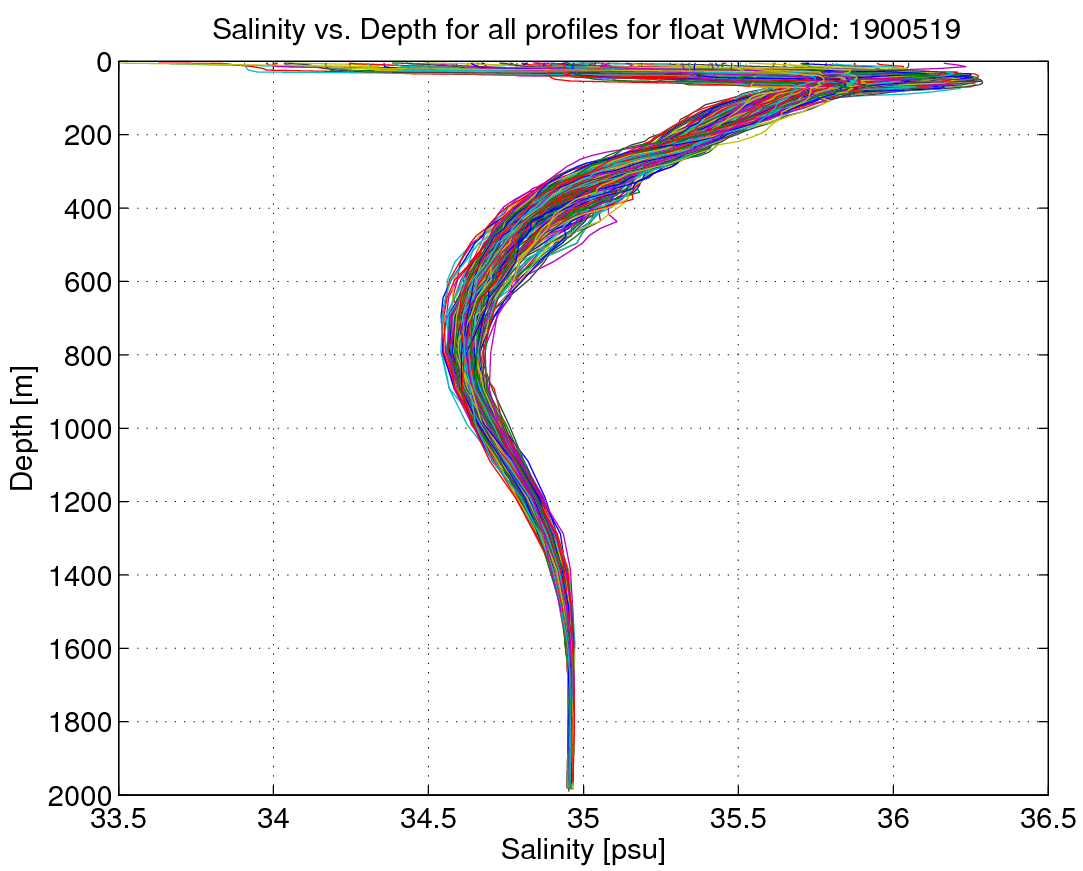

Differences of temperature and salinity for each profile
(Click on the figure for a larger version with links to individual profiles).
| Comparison dataset | Temperature | ||||
|---|---|---|---|---|---|
| nobs | mean | std dev | slope | intercept | |
| Levitus (WOA05) | 160 | 0.0783 | 0.0789 | 0.0000 | 0.0524 |
| Navy (GDEM3)) | 160 | 0.1197 | 0.0834 | 0.0001 | 0.0512 |
| Argo-only | 160 | -0.0095 | 0.0742 | 0.0000 | -0.0315 |
| Buddies | 26 | 0.0054 | 0.0953 | -0.0000 | 0.0190 |
| Comparison dataset | Salinity | ||||
|---|---|---|---|---|---|
| nobs | mean | std dev | slope | intercept | |
| Levitus (WOA05) | 160 | -0.0033 | 0.0160 | 0.00001 | -0.0125 |
| Navy (GDEM3)) | 160 | 0.0141 | 0.0156 | 0.00001 | 0.0053 |
| Argo-only | 160 | -0.0004 | 0.0126 | 0.00001 | -0.0075 |
| Buddies | 26 | 0.0055 | 0.0147 | -0.00001 | 0.0083 |
Differences of temperature and salinity for each profile
(Click on the figure for a larger version with links to individual profiles).
| General information | Number of Profiles | Dates | |||
|---|---|---|---|---|---|
| Float WMOId | 1900519 | Total | 160 | Creation | 20120411100033 |
| Principal Investigator | Juergen FISCHER | Real time | 0 | Update | 20120411100033 |
| Data Center | IF | Adjustedtime | 0 | Analysis | 20130722124621 |
| Instrument reference | APEX Profiling Float 2070 | Delayed_mode | 160 | ||
Click HERE for a table with information on each profile, including links to the individual profile pages.
Last update: 29-Jul-2013
