Temperature Space-Time Diagrams from MV Oleander XBT profiles


The diagrams below show the temporal and spatial distribution of temperature at various depths (0m, 100m, 200m, 500m).


Space-Time Diagram for 0m, MV Oleander XBT data

0m Space-Time Diagram

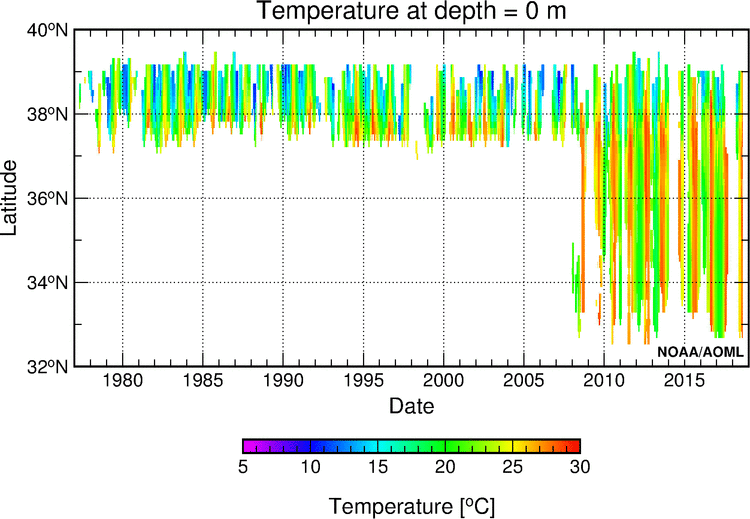

Space-time diagram of MV Oleander XBT temperature profiles, 0m (± 10m).

top

Space-Time Diagram for 100m, MV Oleander XBT data

100m Space-Time Diagram

Space-time diagram of MV Oleander XBT temperature profiles, 100m (± 10m).

top

Space-Time Diagram for 200m, MV Oleander XBT data

200m Space-Time Diagram

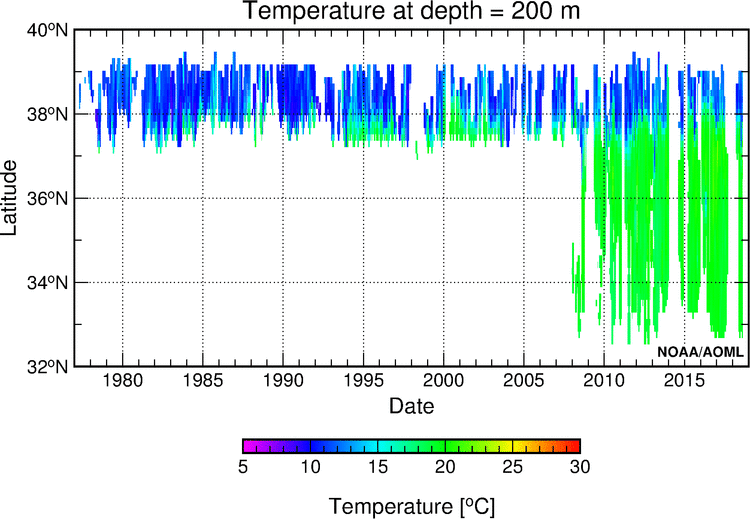

Space-time diagram of MV Oleander XBT temperature profiles, 200m (± 10m).

top

Space-Time Diagram for 500m, MV Oleander XBT data

500m Space-Time Diagram

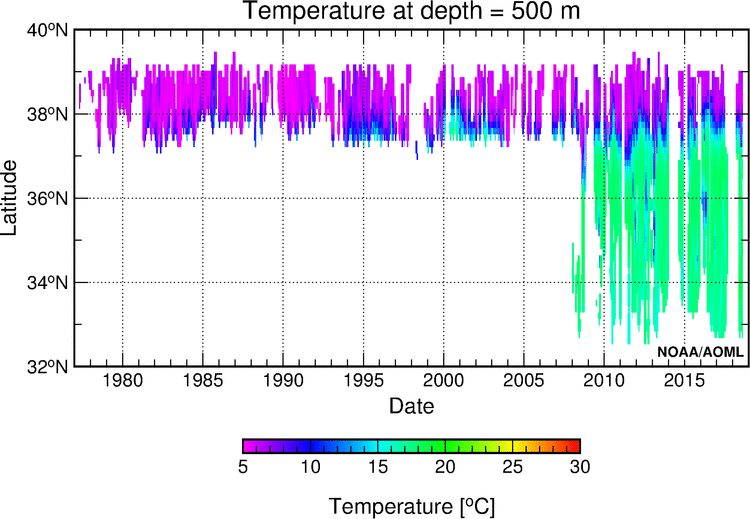

Space-time diagram of MV Oleander XBT temperature profiles, 500m (± 10m).

top
