This sea height residual (SHR) space-time diagram provides useful means to identify the motion of the NBC retroflection and the shedding and translation of rings. These anticyclonic warm rings can usually be identified by their large positive SHR values, red colors in the graphics.

The SHR fields are obtained by removing the anual signal to the sea height anomaly (SHA) fields from satellite altimetry (AVISO). Then, mean SHR values are computed for same longitude sections along a corridor to obtain the space-time dependent SHR dataset. This space-time diagram is updated monthly.

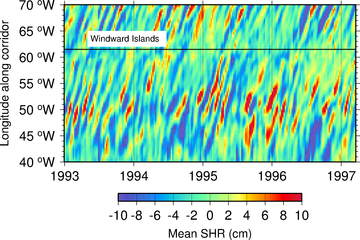

shr_xt_1993_1996

This space-time diagram is updated on a monthly basis using near real time altimetry data (4 week delay). Last updated on 02/28/19 02:20.

---

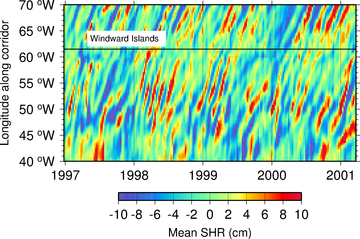

shr_xt_1997_2000

This space-time diagram is updated on a monthly basis using near real time altimetry data (4 week delay). Last updated on 02/28/19 02:20.

---

shr_xt_2001_2004

This space-time diagram is updated on a monthly basis using near real time altimetry data (4 week delay). Last updated on 02/28/19 02:20.

---

shr_xt_2005_2008

This space-time diagram is updated on a monthly basis using near real time altimetry data (4 week delay). Last updated on 02/28/19 02:20.

---

shr_xt_2009_2012

This space-time diagram is updated on a monthly basis using near real time altimetry data (4 week delay). Last updated on 02/28/19 02:20.

---

shr_xt_2013_2019

This space-time diagram is updated on a monthly basis using near real time altimetry data (4 week delay). Last updated on 02/28/19 02:20.

---
