Effects of Synoptic Surveillance on model forecasts for
24 October 2005 1200 UTC
Wilma.
Quicktime movie of AVN DLM wind model
forecast
Quicktime movie of DLM wind data
increment
| TRACK (km) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MODEL | 12 h | 24 h | 36 h | 48 h | 60 h | 72 h | 84 h | 96 h | 108 h | 120 h
| AVNN | 83 | 114 | 74 | 64 | | | | | |
| AVNO | 44 | 93 | 84 | 137 | | | | |
| %IMP | 47% | 18% | -14% | -114% | | | | | |
| GFNO | 11 | 97 | 210 | 523 | | | | | |
| GFDL | 22 | 96 | 190 | 449 | | | | | |
| %IMP | -100% | 1% | 10% | 14% | | | | | |
| INTENSITY (kt)
| MODEL | 12 h | 24 h | 36 h | 48 h | 60 h | 72 h | 84 h | 96 h | 108 h | 120 h
| AVNN | -42 | -18 | 0 | -6 | | | | | |
| AVNO | -34 | -23 | 3 | -5 | | | | | |
| %IMP | 19% | -28% | und% | 17% | | | | | |
| GFNO | -26 | -14 | 7 | 12 | | | | | |
| GFDL | -30 | -11 | 5 | 7 | | | | | |
| %IMP | -15% | 21% | 29% | 42% | | | | | |
| | ||||||||||

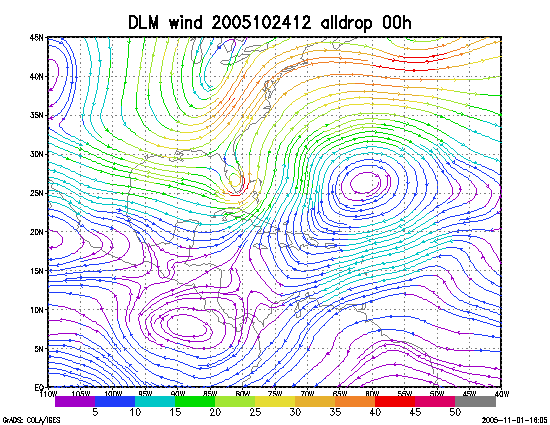

Figure 1. NCEP 850 - 200 hPa mean wind analysis for 24 October 2005 1200 UTC (Hurricane Wilma).

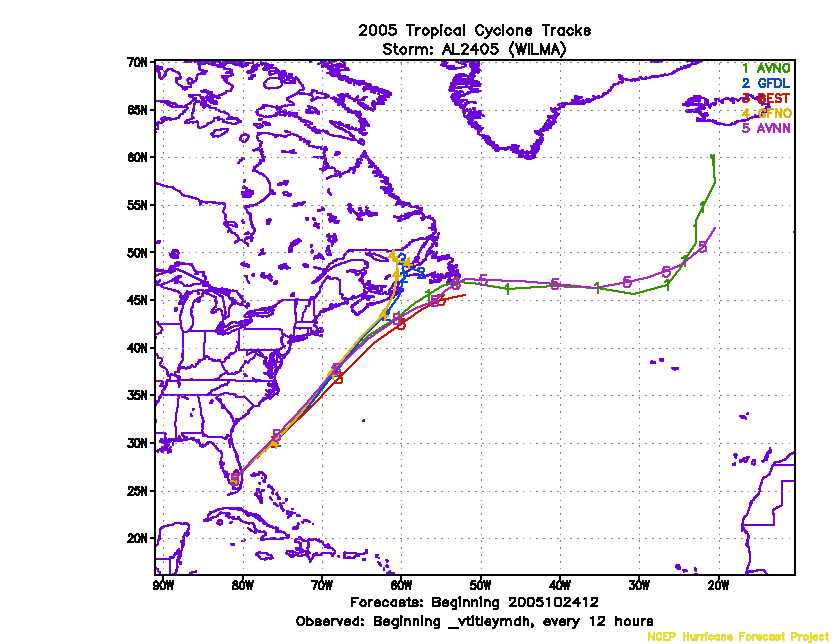

Figure 2. Track forecasts for the no dropwindsonde (NO or NN) and the all dropwindsonde (AL) runs for the AVN and GFDL models initialized on 24 October 2005 1200 UTC.

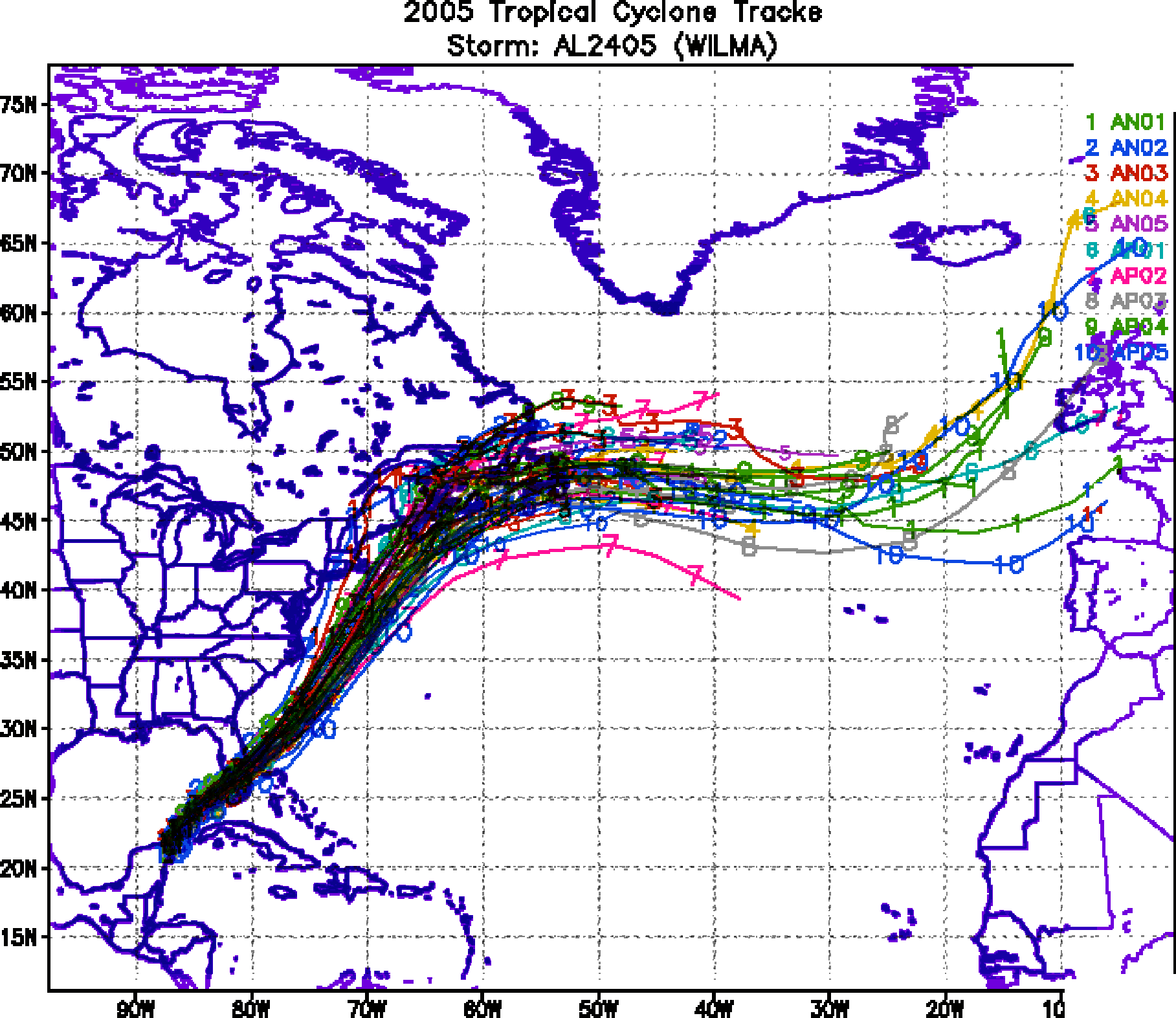

Figure 3. NCEP Global Ensemble Prediction System track forecasts for all cyclones in the Atlantic basin initialized from 22 October 2005 1800 UTC to 23 October 2005 1200 UTC, showing the tracks of Hurricane Wilma.
Figure 4. Ensemble perturbation variance at the nominal sampling time 24 October 2005 1200 UTC from the previous day NCEP ensemble forecast. The green circles represent the dropwindsonde locations.
Figure 5. Variance explained within the verification region (large red circle) for observations taken at the sampling time 24 October 2005 1200 UTC from the Ensemble Transform Kalman Filter run from the previous day NCEP ensemble forecast. The green circles represent the dropwindsonde locations. [not available]
Figure 6. Adjoint-Derived Steering Sensitivity Vector for observations taken at the sampling time 24 October 2005 1200 UTC. The green circles represent the dropwindsonde locations. [not available]
Figure 7. NOGAPS Singular Vector for observations taken at the sampling time 24 October 2005 1200 UTC. The green circles represent the dropwindsonde locations. [not available]
Figure 8. Initial condition differences in the 850 - 200 hPa mean wind between the no and all dropwindsonde cases for 24 October 2005 1200 UTC. The circles represent the dropwindsonde locations.
