Effects of Synoptic Surveillance on model forecasts for
11 September 2005 1200 UTC
Ophelia.
Quicktime movie of AVN DLM wind model
forecast
Quicktime movie of DLM wind data
increment
| TRACK (km) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MODEL | 12 h | 24 h | 36 h | 48 h | 60 h | 72 h | 84 h | 96 h | 108 h | 120 h
|
| AVNN | 44 | 83 | 123 | 148 | 206 | 202 | 190 | 279 | 444 | 703
| AVNO | 44 | 67 | 104 | 95 | 126 | 135 | 208 | 332 | 558 | 758
| %IMP | 0% | 19% | 15% | 36% | 39% | 33% | -28% | -19% | -26% | -8%
|
| GFNO | No forecast available
| GFDL | No forecast available
| %IMP |
| INTENSITY (kt)
| MODEL | 12 h | 24 h | 36 h | 48 h | 60 h | 72 h | 84 h | 96 h | 108 h | 120 h
|
| AVNN | -3 | 11 | 3 | 1 | 2 | -8 | -17 | -9 | -6 | 5
| AVNO | 2 | 7 | 6 | 6 | 7 | -6 | -13 | -12 | -14 | -7
| %IMP | 33% | 36% | -100% | -500% | -250% | 25% | 24% | -33% | -133% | -40%
|
| GFNO | No forecast available
| GFDL | No forecast available
| %IMP |
| | ||||||||||||||||||||||||||||||||||||||||||||||
Figure 1. NCEP 850 - 200 hPa mean wind analysis for 11 September 2005 1200 UTC (Hurricane Ophelia).

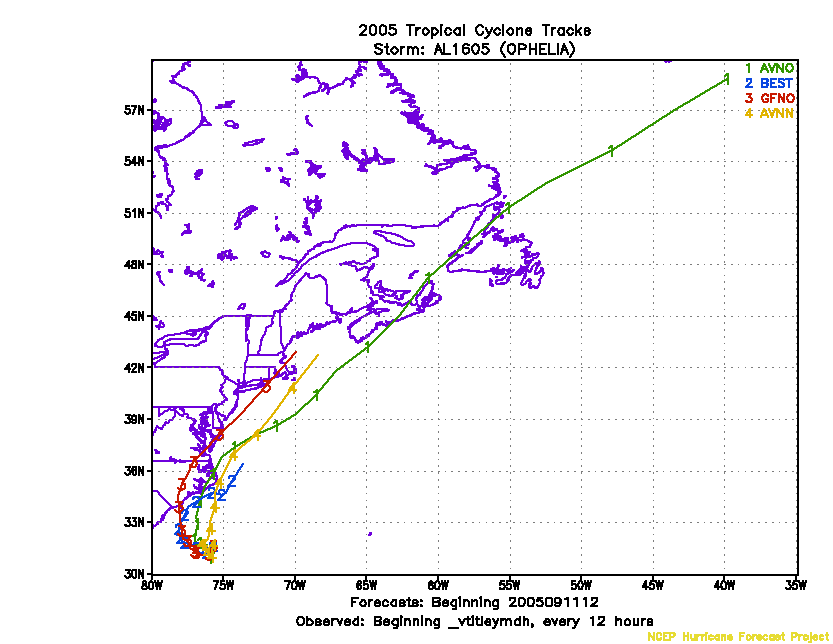

Figure 2. Track forecasts for the no dropwindsonde (NO or NN) and the all dropwindsonde (AL) runs for the AVN and GFDL models initialized on 11 September 2005 1200 UTC.
Figure 3. Initial condition differences in the 850 - 200 hPa mean wind between the no and all dropwindsonde cases for 11 September 2005 1200 UTC.
