Effects of Synoptic Surveillance on model forecasts for
08 September 2005 1800 UTC
Ophelia.
Quicktime movie of AVN DLM wind model
forecast
Quicktime movie of DLM wind data
increment
| TRACK (km) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MODEL | 12 h | 24 h | 36 h | 48 h | 60 h | 72 h | 84 h | 96 h | 108 h | 120 h
|
| AVNN | 69 | 129 | 107 | 260 | 412 | 664 | 799 | 916 | 1106 | 1237
| AVNO | 69 | 133 | 115 | 156 | 331 | 502 | 634 | 681 | 726 | 787
| %IMP | 0% | -3% | -7% | 40% | 20% | 24% | 21% | 17% | 34% | 37% | |
|
| GFNO | 15 | 24 | 103 | 77 | 82 | 171 | 268 | 368 | 415 | 407
| GFDL | 44 | 63 | 87 | 62 | 86 | 168 | 233 | 322 | 368 | 364
| %IMP | -193% | -163% | 16% | 19% | -5% | 2% | 13% | 12% | 11% | 11%
| INTENSITY (kt)
| MODEL | 12 h | 24 h | 36 h | 48 h | 60 h | 72 h | 84 h | 96 h | 108 h | 120 h
|
| AVNN | -22 | -28 | -20 | -31 | -30 | -4 | -14 | -13 | -17 | -13
| AVNO | -21 | -26 | -17 | -21 | -31 | -8 | -6 | 7 | 7 | 15
| %IMP | 5% | 7% | 15% | 32% | -3% | -100% | 57% | 46% | 59% | -15%
|
| GFNO | 6 | 12 | 35 | 28 | 1 | 19 | 12 | 7 | -13 | -23
| GFDL | 16 | 3 | 18 | 28 | -1 | 19 | 14 | 10 | -7 | -12
| %IMP | -167% | 75% | 49% | 0% | 0% | 0% | -17% | -43% | 46% | 48%
| | ||||||||||
Figure 1. NCEP 850 - 200 hPa mean wind analysis for 08 September 2005 1800 UTC (Tropical Storm Ophelia).

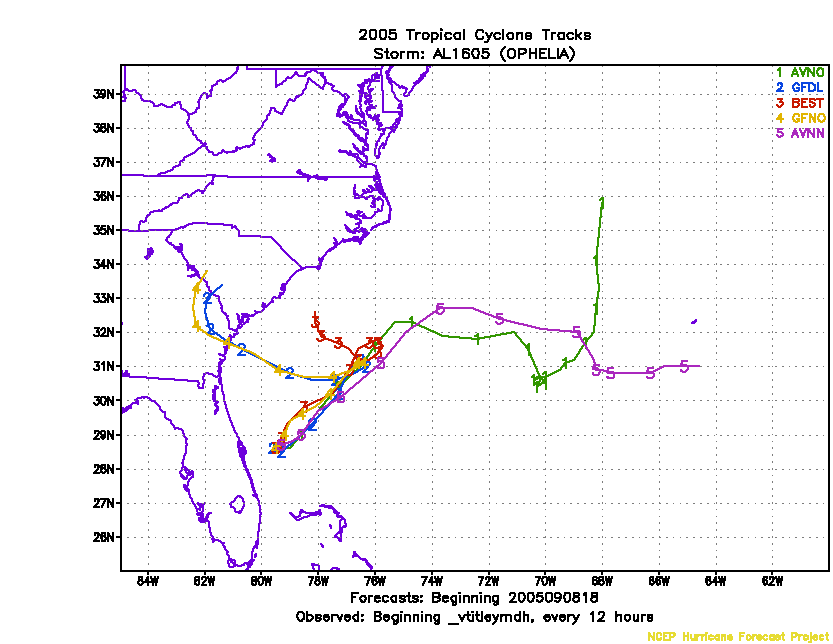

Figure 2. Track forecasts for the no dropwindsonde (NO or NN) and the all dropwindsonde (AL) runs for the AVN and GFDL models initialized on 08 September 2005 1800 UTC.
Figure 3. Initial condition differences in the 850 - 200 hPa mean wind between the no and all dropwindsonde cases for 08 September 2005 1800 UTC.
