Effects of Synoptic Surveillance on model forecasts for
24 August 1999 0600 UTC
DENNIS.
QuickTime movie of DLM wind model forecasts
QuickTime movie of DLM wind data increments
| TRACK (km) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MODEL | 12 h | 24 h | 36 h | 48 h | 60 h | 72 h | 84 h | 96 h | 108 h | 120 h
|
| AVNN | 102. | 120. | 179. | 255. | 322. | 300. | 359. | 465. | 553. | 656.
| AVAL | 30. | 46. | 83. | 68. | 72. | 96. | 110. | 146. | 170. | 184.
| %IMP | 71% | 62% | 54% | 73% | 78% | 68% | 69% | 69% | 69% | 72%
|
| GFNO | 47. | 20. | 185. | 277. | 401. | 479. | 598. | 733. | 876. | 1186.
| GFAL | 94. | 147. | 224. | 292. | 301. | 332. | 346. | 436. | 439. | 404.
| %IMP | -100% | -635% | -21% | -5% | 25% | 31% | 42% | 41% | 50% | 66%
| INTENSITY (kt)
| MODEL | 12 h | 24 h | 36 h | 48 h | 60 h | 72 h | 84 h | 96 h | 108 h | 120 h
|
| AVNN | -18. | -18. | -32. | -43. | -44. | -40. | -36. | -47. | -61. | -61.
| AVAL | -10. | -14. | -28. | -38. | -37. | -30. | -28. | -37. | -46. | -48.
| %IMP | 44% | 22% | 13% | 12% | 16% | 25% | 22% | 21% | 25% | 21%
|
| GFNO | 3. | 18. | 10. | 5. | 10. | 21. | 27. | 23. | 18. | 22.
| GFAL | -6. | -1. | -12. | -1. | -2. | 12. | 31. | 20. | 16. | 13.
| %IMP | -100% | 94% | -20% | 80% | 80% | 43% | -15% | 13% | 11% | 41%
|
| SHNO | -3. | 4. | -1. | -3. | -2. | 7. | 9. | -2. | -17. | -17.
| SHAL | -4. | 3. | -4. | -8. | -8. | -1. | 1. | -9. | -24. | -23.
| %IMP | -33% | 25% | -300% | -167% | -300% | 86% | 89% | -350% | -41% | -35%
|
| DSNO | -3. | 4. | -1. | -3. | -2. | 7. | 9. | -2. | -17. | -17.
| DSAL | -4. | 3. | -4. | -8. | -8. | -1. | 1. | -9. | -24. | -23.
| %IMP | -33% | 25% | -300% | -167% | -300% | 86% | 89% | -350% | -41% | -35%
|
| | ||||||||||
| 28/0700UTC 26.6N 76.8W Abaco Islands, Bahamas 97 h into forecast | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MODEL | LAT | LON | TIME | ERROR | LOCATION
|
| AVNN | 22.96 | 70.17 | 15.0 | 781.5 | Near Turk Island, Turks and Caicos Islands
| AVAL | 24.13 | 74.45 | 57.5 | 361.9 | Cockburn Town, San Salvador, Bahama Islands
| %IMP | 52% | 54%
|
| GFNO | 24.25 | 74.30 | 38.5 | 362.1 | Cockburn Town, San Salvador, Bahama Islands
| GFAL | 24.52 | 77.75 | 67.0 | 249.9 | Behring Point, Andros Island, Bahama Islands
| %IMP | 49% | 31%
|
|
| 04/2100UTC 34.8N 76.5W Cape Lookout National Seashore, NC 279 h into forecast
| MODEL | LAT | LON | TIME | ERROR | LOCATION
|
| AVNN | No landfall forecast
| AVAL | No landfall forecast
| %IMP
|
| GFNO | 35.00 | 75.12 | 106.5 | 127.7 | Buxton, NC
| GFAL | 26.66 | 79.08 | 82.5 | 937.3 | West End, Grand Bahama Island, Bahama Islands
| %IMP | -14% | -634%
| | |||||||||||||||||
Figure 1. NCEP 850 - 200 hPa mean wind analysis for 24 August 1999 0600 UTC (Tropical Depression Dennis).
Figure 2. Track forecasts for the no dropwindsonde (NO or NN) and the all dropwindsonde (AL) runs for the AVN and GFDL models initialized on 24 August 1999 0600 UTC. The best track is shown in black.

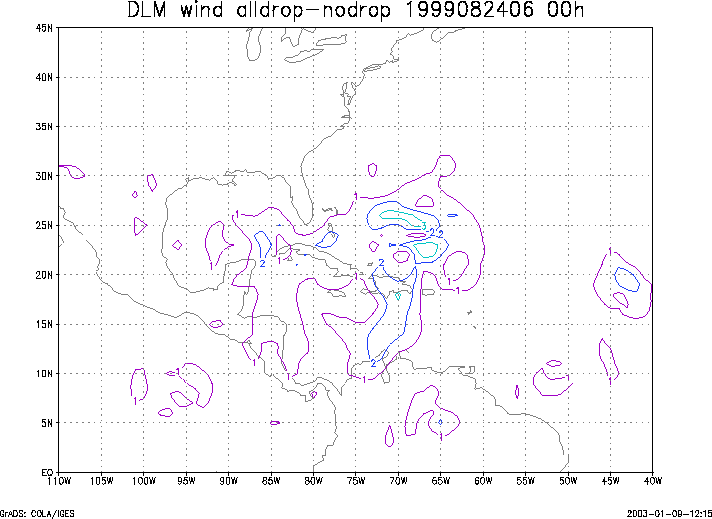

Figure 3. Initial condition differences in the 850 - 200 hPa mean wind between the no and all dropwindsonde cases for 24 August 1999 0600 UTC.
