Mission Summary
20130913N1 Aircraft 49RF
Tail Doppler Radar Mission Tropical Storm Ingrid

Aircraft Crew (49RF)
Aircraft CommanderKristie Twining
Co-pilotJason Mansour
Co-pilotDoug MacIntyre
Flight DirectorNick Morgan
Flight DirectorBarry Damiano
Data TechnicianJoe Greene
Data TechnicianGabe Defeo
Dropsonde OperatorJorge Delgado
Dropsonde OperatorLeonard Miller
Scientific Crew (49RF)
None


Proposed NOAA 49 track

Mission Plan :

NOAA 49RF will fly an HRD-tasked Tail Doppler Radar mission around Tropical Storm Ingrid. The G-IV will leave MacDill AFB, FL 1300 UTC on Sept. 13th and will recover back at MacDill AFB, FL by 2200 UTC the same day.

TROPICAL STORM SYNOPTIC SURVEILLANCE MISSION PLAN: INGRID
Hurricane Research Division
September 14, 2013
Aircraft: N49RF
Proposed takeoff: 13/1300Z
DROP LOCATIONS
# LAT LON RAD/AZM TIME
deg min deg min rm/dg hh:mm
2S 21 19 92 30 120/045 1:33
3S 19 54 91 53 120/090 1:47
4S 18 50 92 53 90/135 1:59
5S 18 24 94 00 90/180 2:10
6S 18 50 95 07 90/225 2:20
7S 19 54 96 07 120/270 2:33
8S 21 19 95 30 120/315 2:46
9S 21 54 94 00 120/360 2:59
10S 20 58 92 53 90/045 3:12
11S 19 54 92 24 90/090 3:22
12S 18 50 92 53 90/135 3:33
13S 18 24 94 00 90/180 3:43
14S 18 50 95 07 90/225 3:53
15S 19 54 95 36 90/270 4:04
16S 20 58 95 07 90/315 4:14
17S 21 24 94 00 90/360 4:24
18S 20 37 93 15 60/045 4:34
19S 19 54 92 56 60/090 4:41
20S 19 12 93 15 60/135 4:49
21S 18 54 94 00 60/180 4:56
22S 19 12 94 45 60/225 5:03
23S 19 54 95 04 60/270 5:10
24S 20 37 94 45 60/315 5:18
25S 20 54 94 00 60/360 5:25

Mission Summary :

Take off Landing
MacDill AFB, FL13:45 UTC MacDill AFB, FL21:37 UTC

NOAA 49RF flew an HRD-tasked Tail Doppler Radar mission around Tropical Storm Ingrid. The G-IV left MacDill AFB, FL 1345 UTC on Sept. 13th and recovered back at MacDill AFB, FL at 2137 UTC the same day.

Problems :

Mission Data :

NetCDF file | 1 sec data | FDir log | FDir form Error Summary

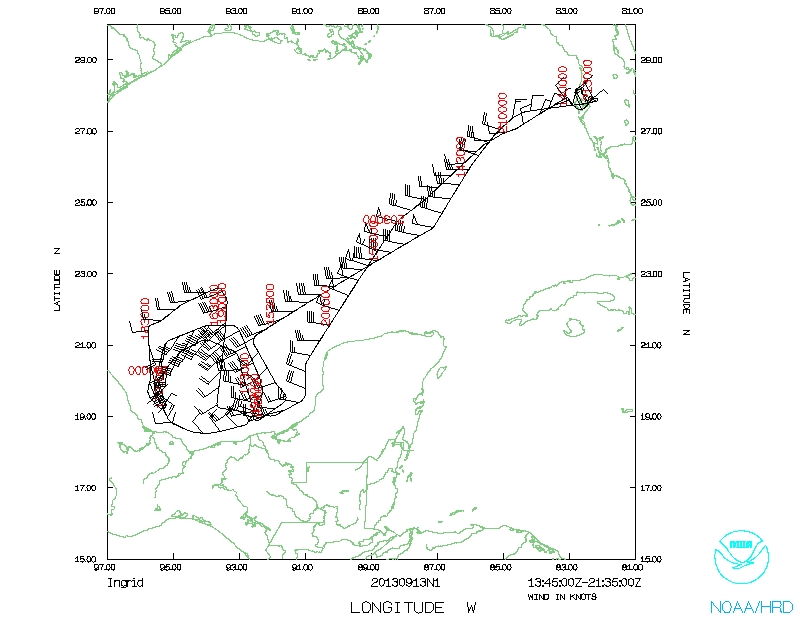

Flight track
Temperature and Moisture
Wind and Atlitude

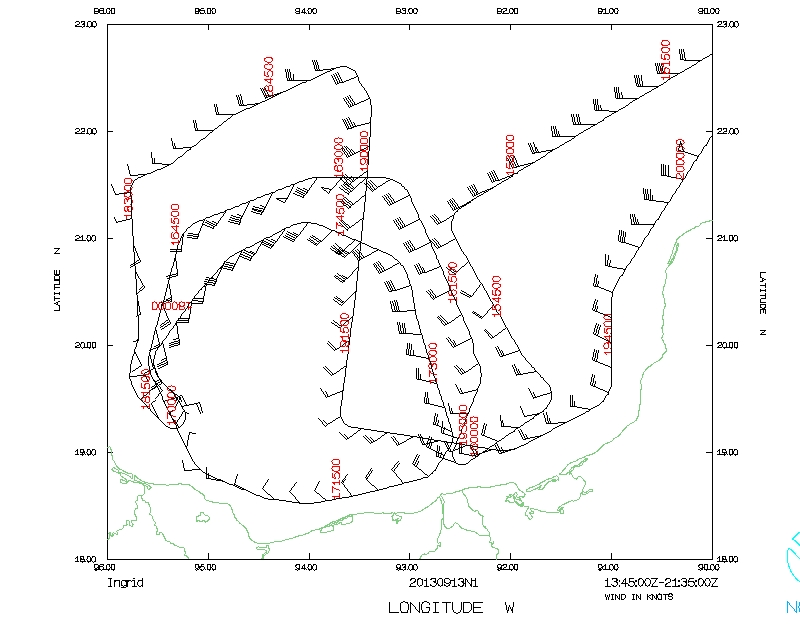

Flight track (detail)
