Mission Summary
20080907N2 Aircraft 49RF
Ike flight 2008
| Aircraft Commander | |
| Pilots | |
| Flight Director | |
| AVAPS | |
| Data System |
| Aircraft Commander | |
| Pilots | |
| Flight Director | |
| AVAPS | |
| Data System |
Mission Plan :
The G-IV jet, with no HRD scientists, will fly a Synoptic Surveillance missions around Hurricane Ike. The jet will leave MacDill AFB, FL at 17:30 UTC and will recover at MacDill AFB, FL by 01:30 UTC.
|
Aircraft: N49RF Altitude: FL410-450 Proposed takeoff: 07/1730Z | |||

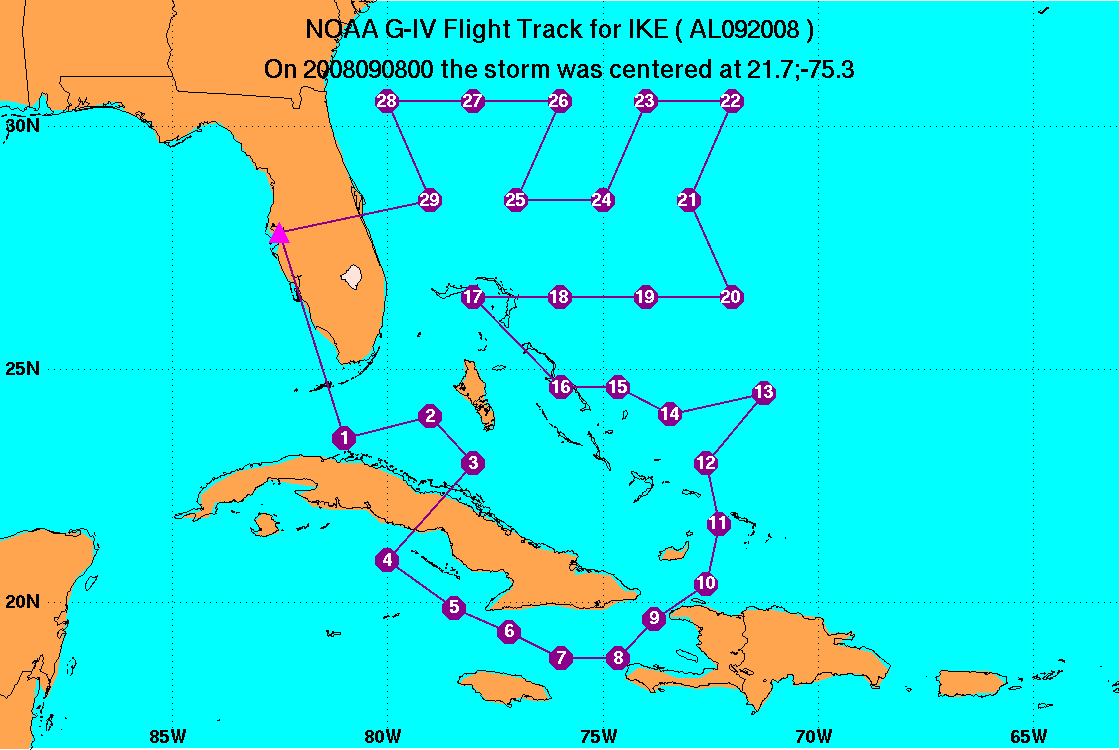

| DROP # | LAT (d m) | LON (d m) | TIME (h mm) |
| 1 | 23 32 | -81 00 | 0:37 |
| 2 | 24 00 | -79 00 | 0:53 |
| 3 | 23 00 | -78 00 | 1:05 |
| 4 | 20 55 | -80 00 | 1:28 |
| 5 | 19 53 | -78 26 | 1:43 |
| 6 | 19 21 | -77 10 | 1:54 |
| 7 | 18 47 | -75 58 | 2:05 |
| 8 | 18 47 | -74 38 | 2:15 |
| 9 | 19 38 | -73 48 | 2:25 |
| 10 | 20 24 | -72 36 | 2:36 |
| 11 | 21 42 | -72 18 | 2:47 |
| 12 | 23 00 | -72 36 | 2:58 |
| 13 | 24 30 | -71 15 | 3:14 |
| 14 | 24 03 | -73 26 | 3:32 |
| 15 | 24 37 | -74 38 | 3:42 |
| 16 | 24 37 | -75 58 | 3:53 |
| 17 | 26 30 | -78 00 | 4:15 |
| 18 | 26 30 | -76 00 | 4:30 |
| 19 | 26 30 | -74 00 | 4:46 |
| 20 | 26 30 | -72 00 | 5:01 |
| 21 | 28 30 | -73 00 | 5:19 |
| 22 | 30 30 | -72 00 | 5:37 |
| 23 | 30 30 | -74 00 | 5:52 |
| 24 | 28 30 | -75 00 | 6:10 |
| 25 | 28 30 | -77 00 | 6:26 |
| 26 | 30 30 | -76 00 | 6:44 |
| 27 | 30 30 | -78 00 | 6:59 |
| 28 | 30 30 | -80 00 | 7:14 |
| 29 | 28 30 | -79 00 | 7:32 |
Mission Summary :
Problems :
Mission Data :
Dropsonde plots
100 mb

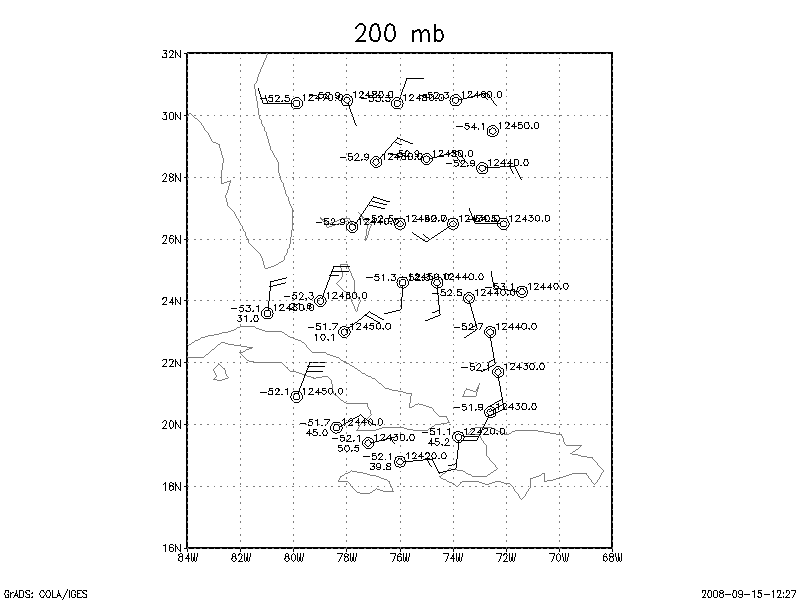

200 mb
250 mb
300 mb

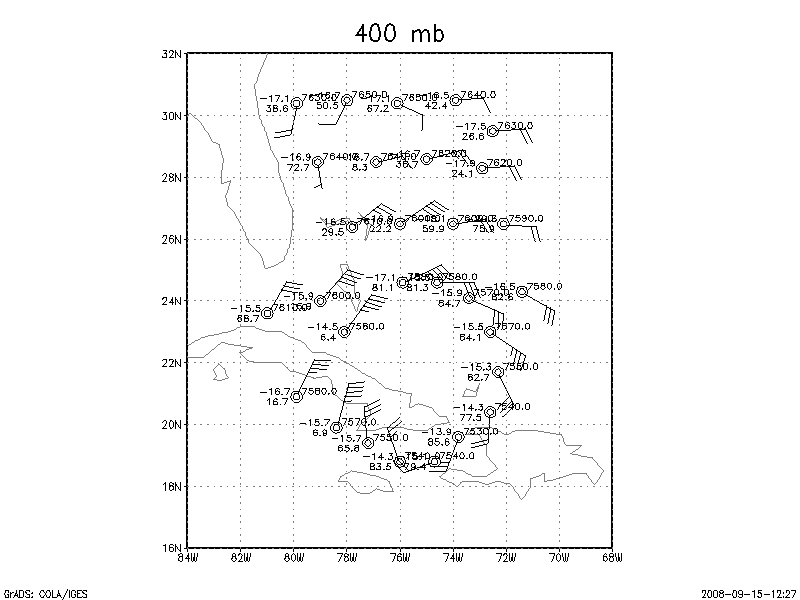

400 mb

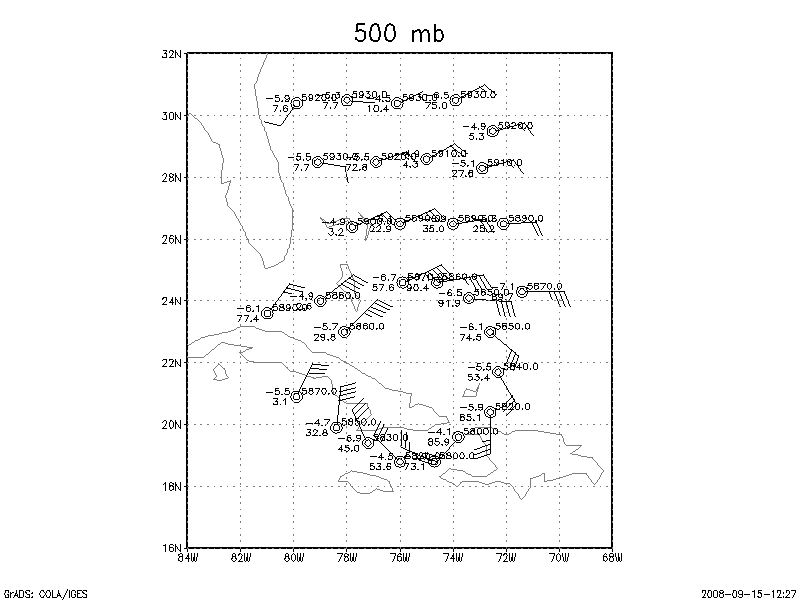

500 mb
600 mb

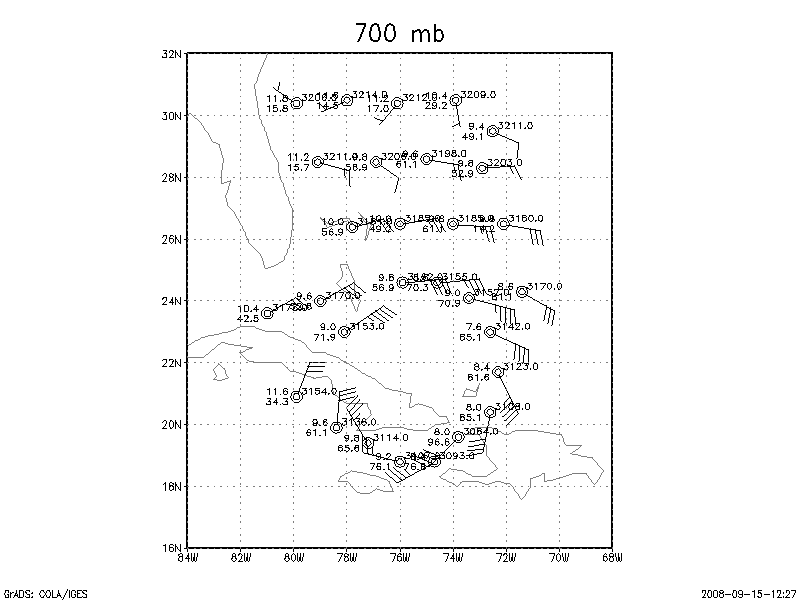

700 mb

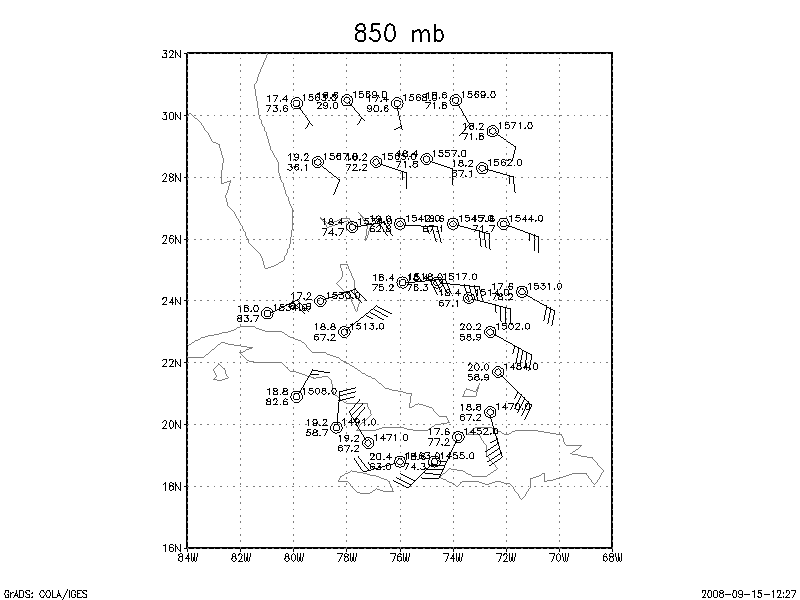

850 mb

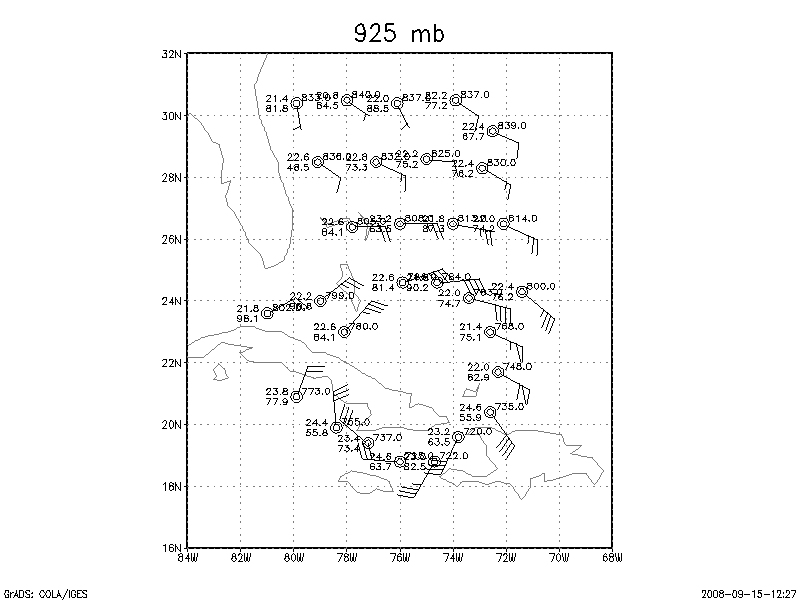

925 mb
1000 mb

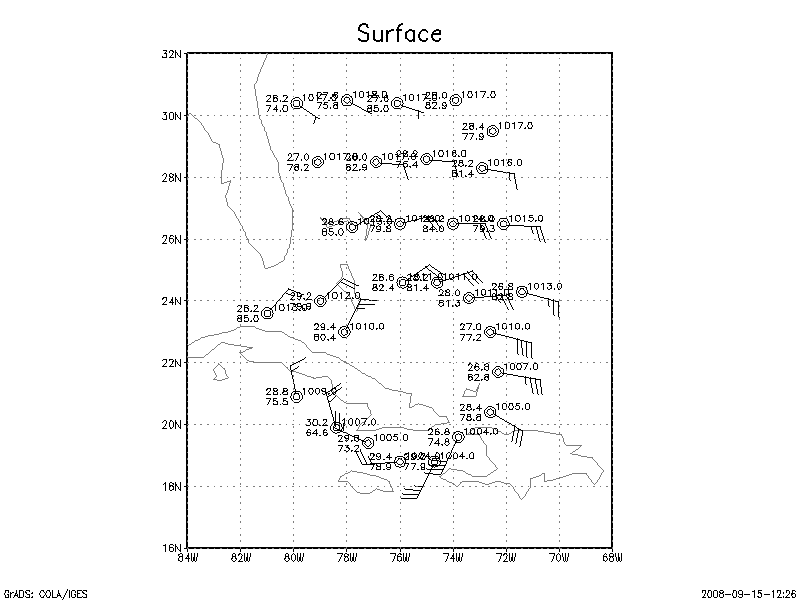

surface
