Mission Summary
20100901H1 Aircraft 42RF
Tail Doppler Mission Hurricane Earl

Aircraft Crew (42RF)
Aircraft CommanderCarl Newman
Co-pilotMark Sweeney
Co-pilotCathy Martin
Flight EngineerJoe Klippel
Flight EngineerPaul Darby
NavigatorDevin Brakob
Flight DirectorIan Sears
Flight DirectorBarry Damiano
Flight DirectorJess Williams
Data TechnicianJoe Bosko
Data TechnicianTerry Lynch
Electronics TechnicianTodd Richards
Electronics TechnicianJ Warnecke
Electronics TechnicianBill Olney
Dropsonde OperatorDale Carpenter
MechanicWes Crouch
Scientific Crew (42RF)
Lead ScientistJohn Gamache
Radar ScientistEric Uhlhorn

Mission Plan :

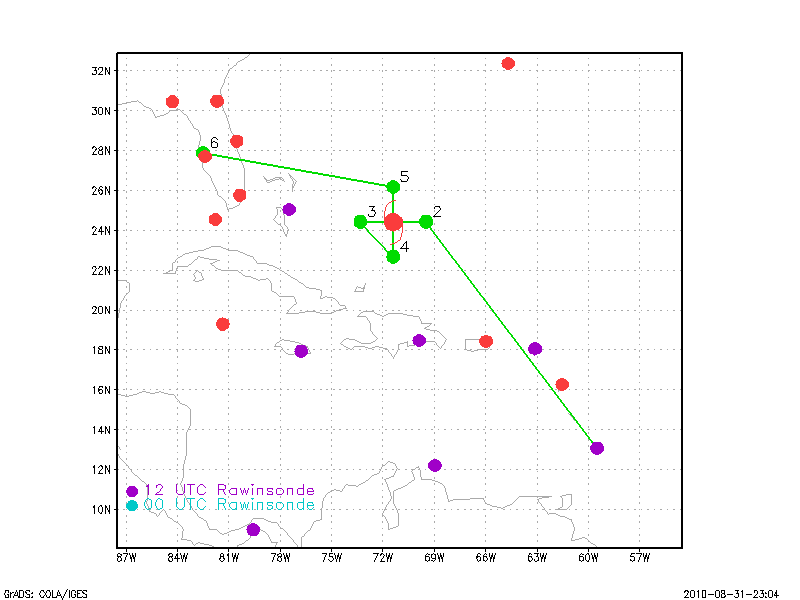

Figure 1. Proposed flight plan

Continued monitoring of Hurricane Earl after it's period of rapid intensification. The plan was to fly a single figure 4 as the NOAA 42 ferried back to MacDill from Barbados. Radial legs were again to extend 105 nm from the storm center on all four sides at bearings of E-W-S-N in that order, and drops were to be made at all 4 exterior points, and at wind maxima, particularly maxima co-located with convection. An eye sounding was also to be taken on first pass through eye. This flight was the first in a second set of flights into Earl, in this case six flights in a row. The flight was part of IFEX, in this case a tail-Doppler-radar mission requested by the NWS Environmental Modeling Center to augment the Doppler data sets on which to develop/refine/test HWRF Doppler assimilation.

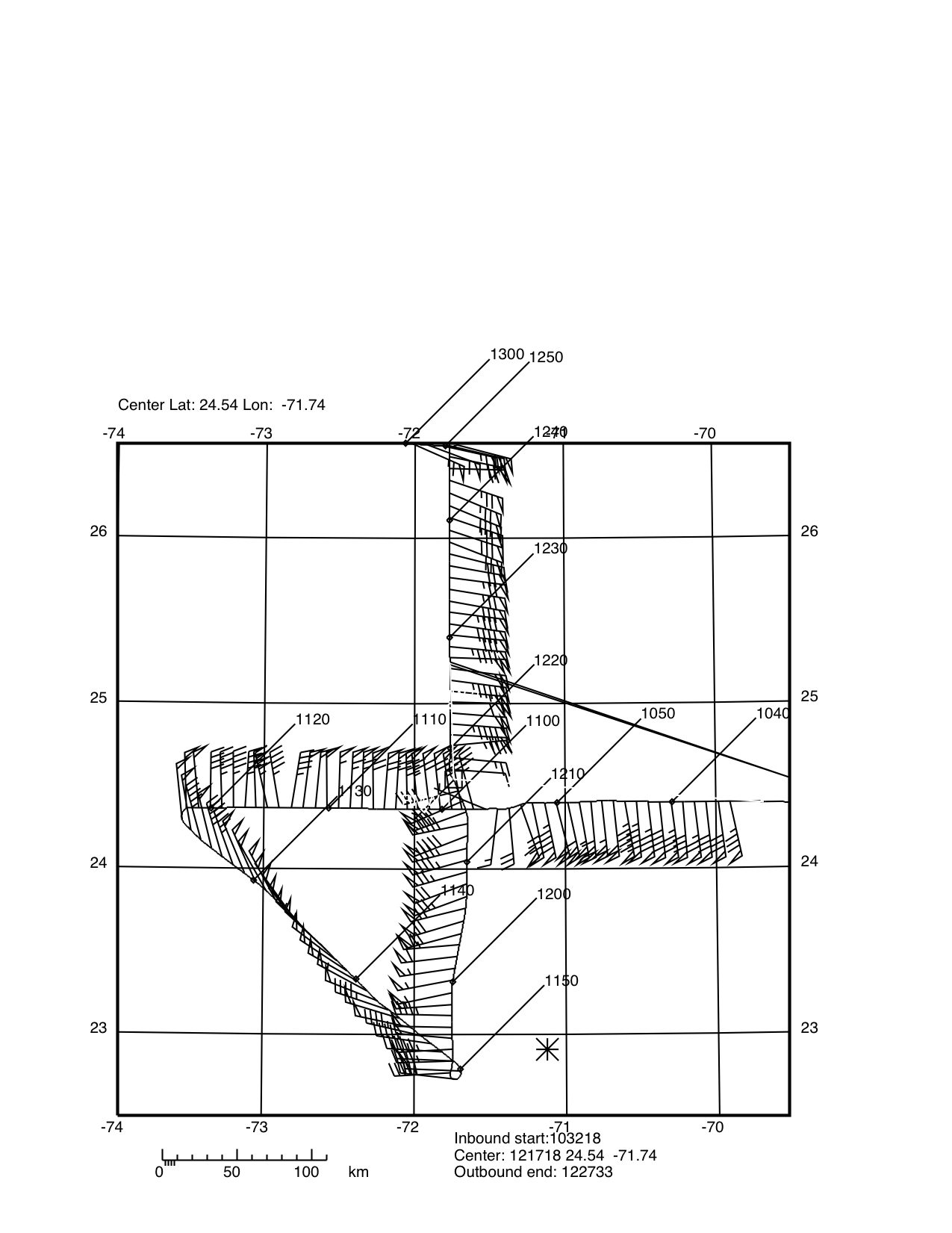

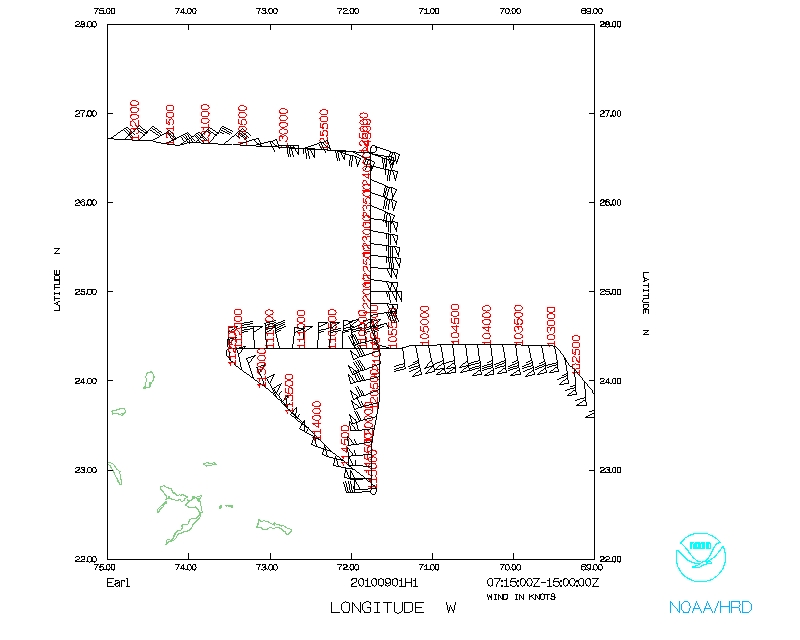

Figure 2. Actual flight plan. Slight asymmetry in flight plan is owing to the northwestward motion of Earl at this time.

Mission Summary :

Take off Landing
Barbados01/07:23 UTC MacDill AFB, FL01/14:59 UTC

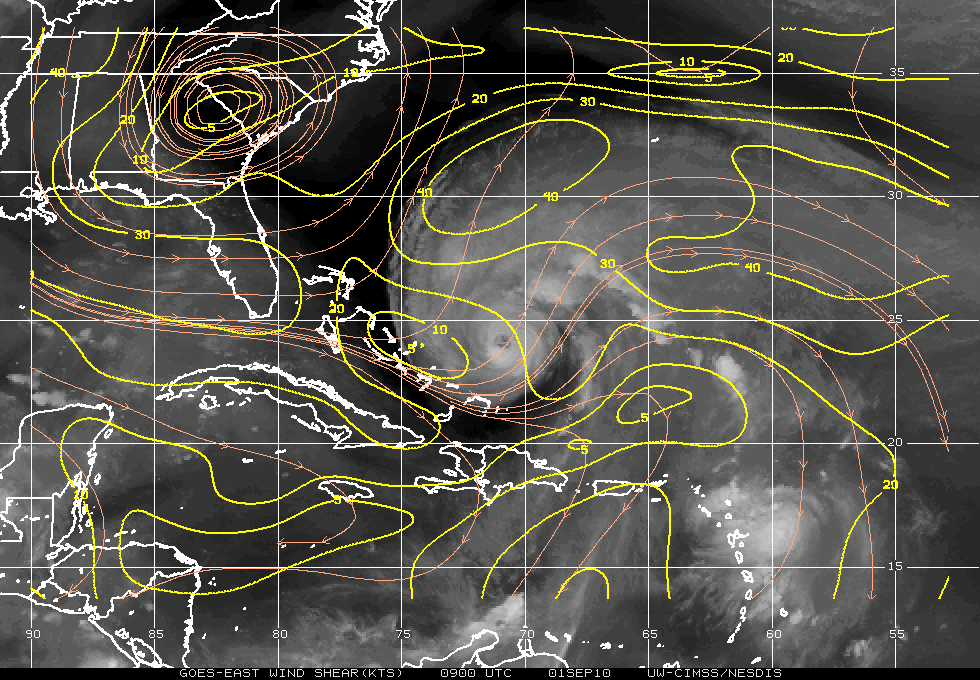

Figure 3. 200-850 mb wind shear (kt) overlaid on water vapor imagery.

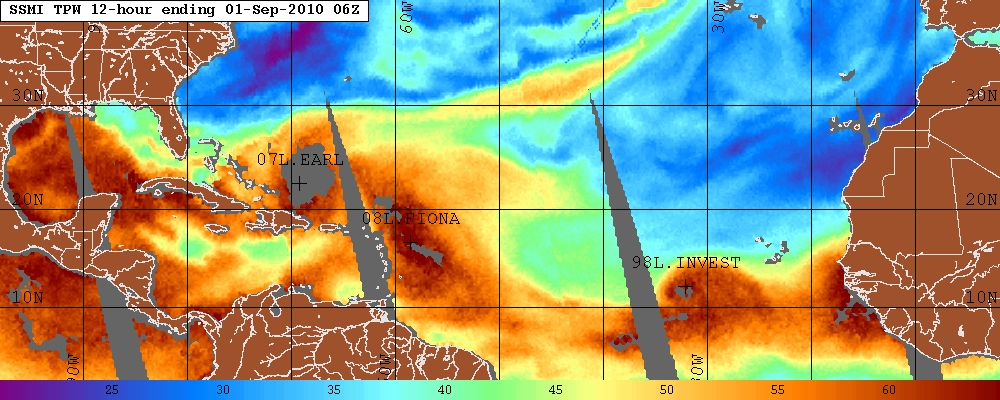

Figure 4. Total precipitable water (mm). Courtesy of NRL Tropical Cyclone Page

Officially Hurricane Earl was a 110-kt, category 3 Hurricane throughout the flight; thus, it was in approximately steady state. The official motion was toward 315 at 15 kts (8 m/s). The CIMMS imagery (Fig. 3) shows a shear over Earl at 15 kts from the SW, with very moist conditions being shown in the TPW imagery (Fig. 4). Hurricane Earl had a well-formed eye, as seen in the infrared and visible satellite imagery (Figs. 5 and 6, respectively).


a

b

c

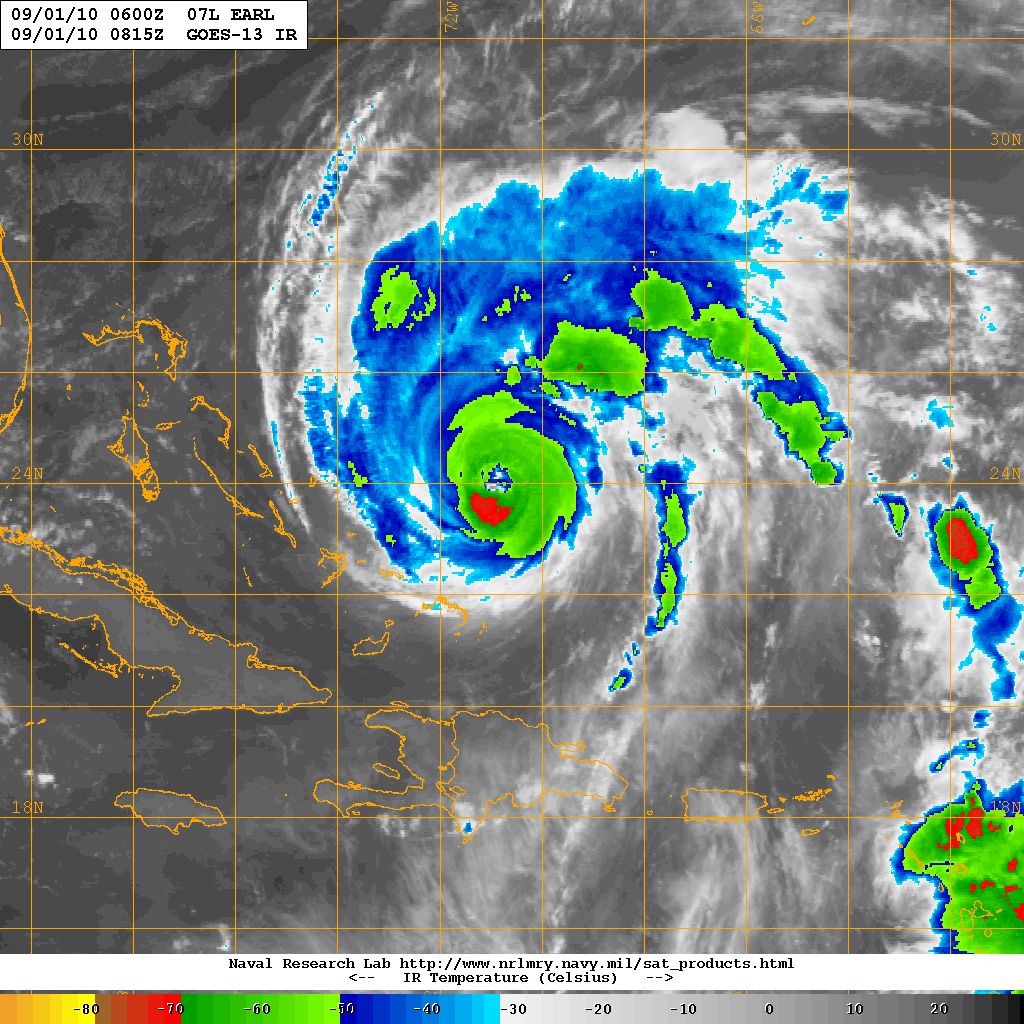

Figure 5. Infrared satellite images during mission. Images are at 815 (a), 1200 (b), and 1500 UTC (c) on 01 September 2010.


Figure 6. Visible satellite image during mission at 1200 UTC on 01 September 2010.

NOAA 42 took off 37 minutes early, at 0723 UTC, to begin the projected 8-h flight from Barbados to MacDill via the center of Hurricane Earl. This was the first 12-hourly P3 flight in a series of 6. We arrived at their IP three hours later at 1030 UTC, and remained in pattern until 1250 UTC, landing at MacDill AFB at 1459 UTC. In the first east-west pass through Earl, the highest wind speeds on the east side were found in an outer maximum with FL winds of 110 kt in the outer, and 90 kt in the inner. Unfortunately we dropped the eyewall sonde in the inner eyewall. The SFMR showed only 80 kt on the outer max, and about the same on inner max. On the west the maximum FL wind was 90 kt, and max SFMR was 82 kt. Maximum FL winds on the south side were 92 kt, and 78 kt from the SFMR, while on the north side maximum FL winds were 113 kt, and max SFMR was 97 kt. Interestingly, the maximum surface winds were found several minutes closer to the center than the FL winds at 12000 ft.


a

b

c

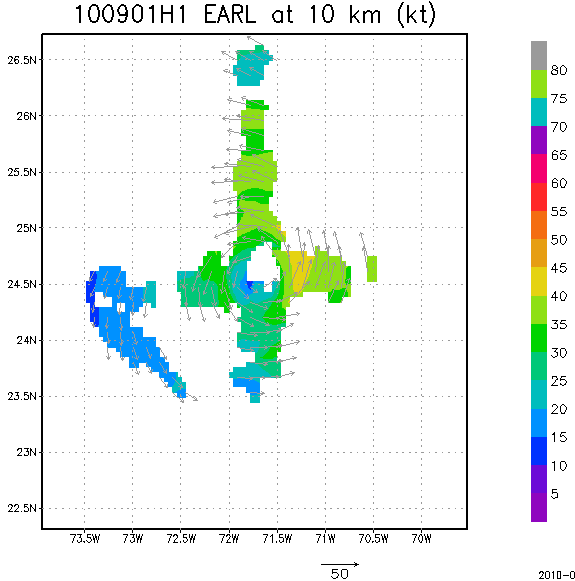

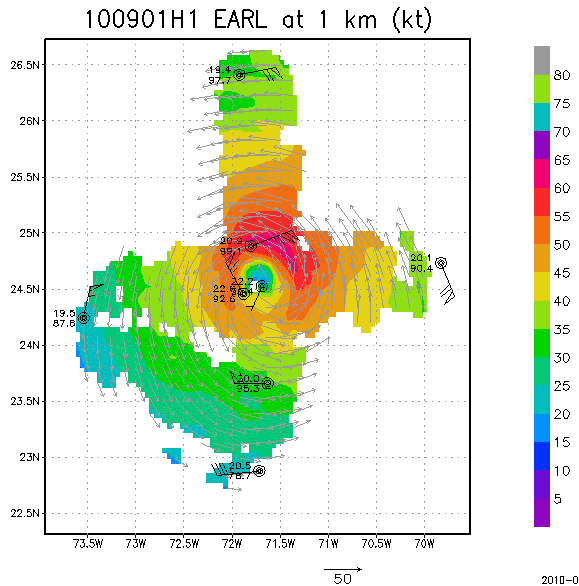

Figure 7. Composite analysis of Doppler and dropsonde wind observations collected during the two penetrations of flight 100901H1 into Hurricane Earl. Winds are relative to earth, not the moving storm. Shaded wind contours are in m/s, and the length of the 50 arrow in the legend represents a wind speed of 50 m/s. A good deal of the asymmetry in wind distribution can be attributed to the storm motion of 8 m/s toward 315. Note that at 1 km, the Doppler analysis showed winds on the NE side over 60 m/s (120 kt).

Sondes launched during this flight indicated saturated conditions below flight level on the north side at 105 nm radius, while all other 3 cardinal direction showed about 3-5 Celsius degrees dewpoint depression. A similar dewpoint depression was found in the southern eyewall sounding.


a

b

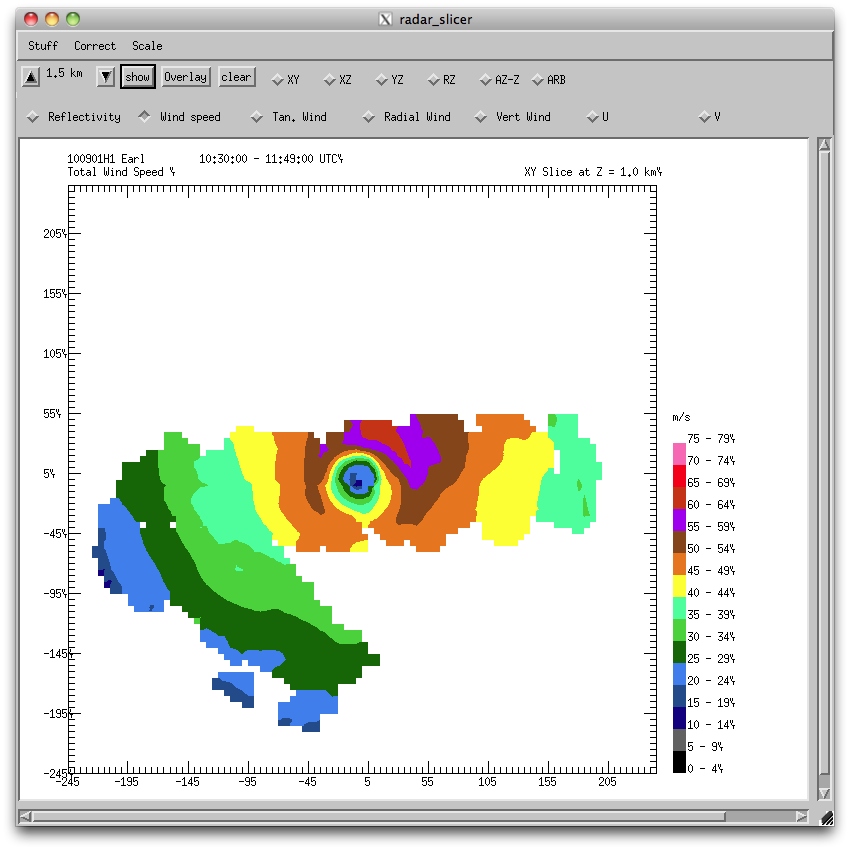

Figure 8. Individual-leg Doppler-wind analyses in Hurricane Earl at 1-km level. Filled color contours indicate wind speed in m/s.

Problems :

This flight went fairly well, with a few problems with sondes. Otherwise quite well, as the steady-state Earl was documented.

John Gamache
Sept. 20, 2010


Mission Data :

LPS log | Radar log | Dropsonde log

serial | NetCDF | 1 second data | |

Flight track

Temperature and Moisture

Wind and Atlitude

Flight track
